Reading error codes on an early 3200GT

ajb101

Junior Member
Messages
152
Hi @redsonnylee, Please could you PM me details for retrieving the software, thanks in advance.

Is there an up-to-date source of the cables/gear we need to do this?


ajb101

Junior Member
Messages
152

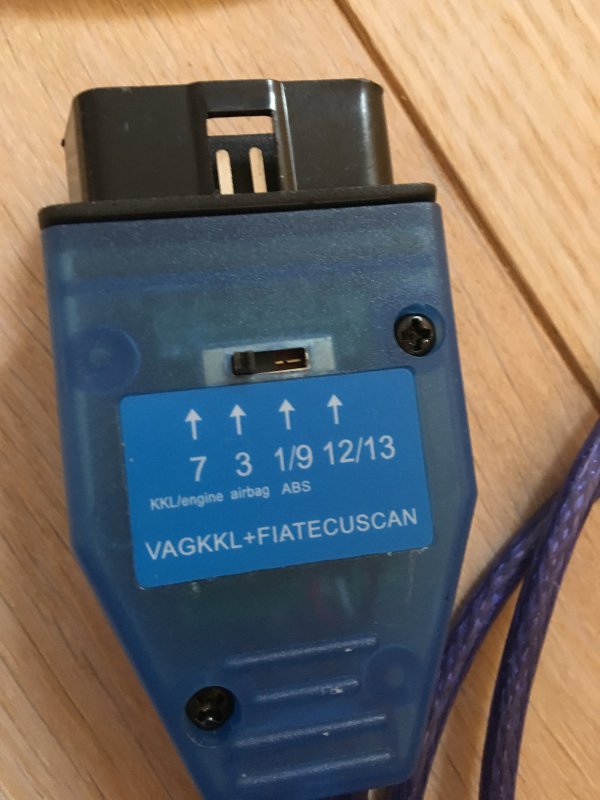

Would these two items work?




redsonnylee

Centenary Club
Messages
1,219
Hi @redsonnylee, Please could you PM me details for retrieving the software, thanks in advance.

Is there an up-to-date source of the cables/gear we need to do this?
I’m out at the moment, I’ll pm the KWP software and instructions later, check earlier in this thread to make sure order the correct cables with the FTD chip installed.


ajb101

Junior Member
Messages
152
Thanks!

...check earlier in this thread to make sure order the correct cables with the FTD chip installed.
By that do you mean this:

"FiatECUScan Compatible Interface Alfa Romeo / Fiat FTDI chip, FT232 chip VAG KKL USB OBD2 Fiatecuscan Finally,"


redsonnylee

Centenary Club
Messages
1,219
Thanks!



By that do you mean this:

"FiatECUScan Compatible Interface Alfa Romeo / Fiat FTDI chip, FT232 chip VAG KKL USB OBD2 Fiatecuscan Finally,"
You have a pm for the files, there is a undiag user groupm on Yahoo, to be sure the correct cables are used "sander" the admin has these for sale.

If you can’t find the undiag user group let me know.

This type https://www.ebay.co.uk/itm/VAG-KKL-409-USB-Fiat-Ecu-Scan-OBD-OBD2-diagnostic-cable-tool-VAG-KKL-409/301814731881?epid=866170007&hash=item46458f5469:g:sr4AAOSwHQ9WX9g0 does not have the ftd chip so you will not be able to make the connection. They all look the same so be careful.

Last edited:

ajb101

Junior Member
Messages
152

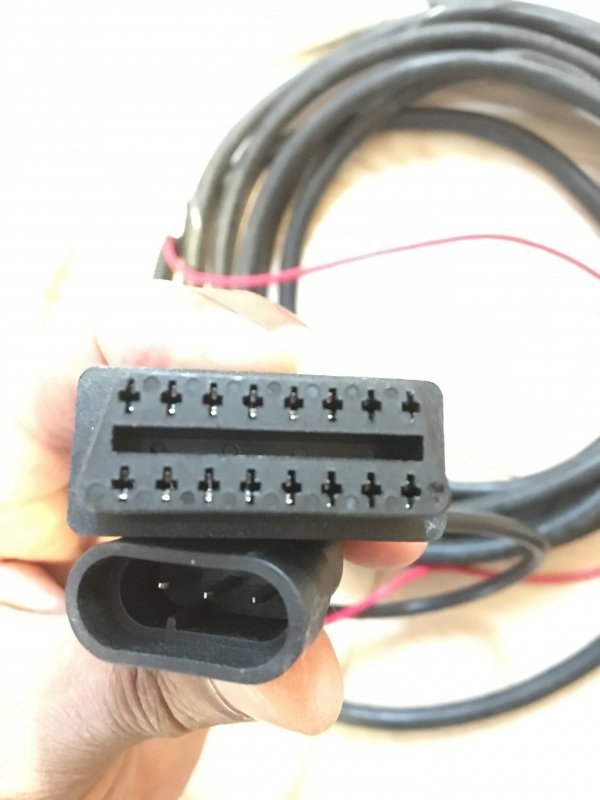

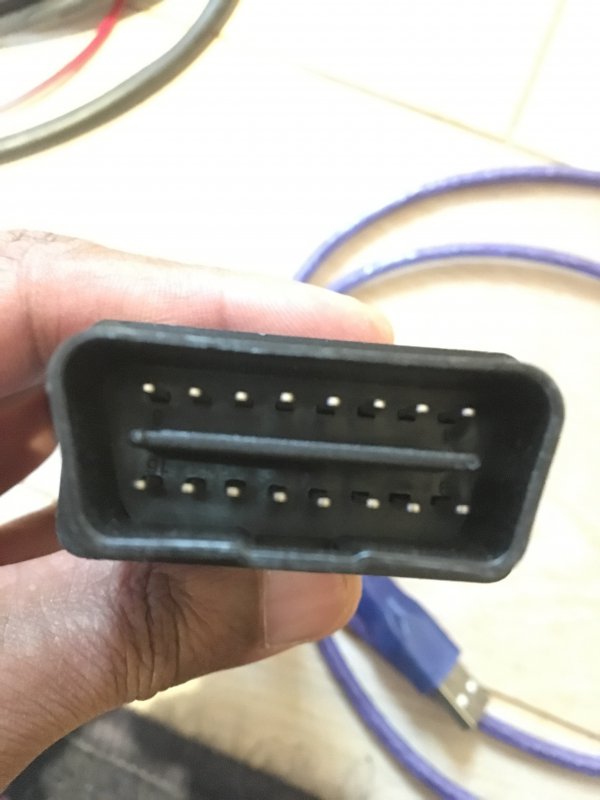

OK, so the the three-pin connector isn't right, the pins are way too fat for the Maserati interface :frusty5:


ajb101

Junior Member
Messages
152
Thanks @redsonnylee

I've ordered a different one now, it looks like it has narrower pins, but can't be 100% sure as the pics were not great, if it fits, I'll edit my post above with the product page.

Last edited:

DaveP99

New Member
Messages
1
Hi, I had exactly the same problem as the first one i bought was slightly larger with wider contact pins. The replacement is OK:


The 3 'tubes' on the backshell seem to be a way of identifying the right part.

Could I also ask for a link to the software?
