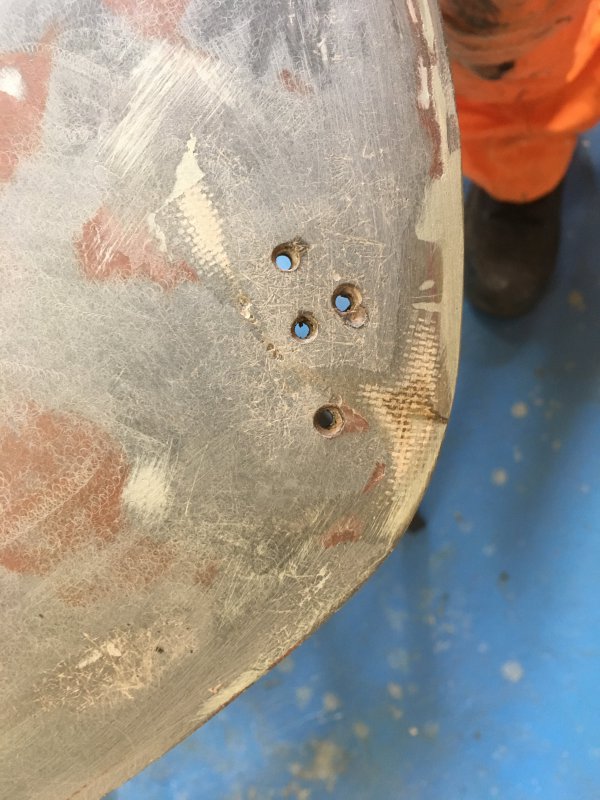

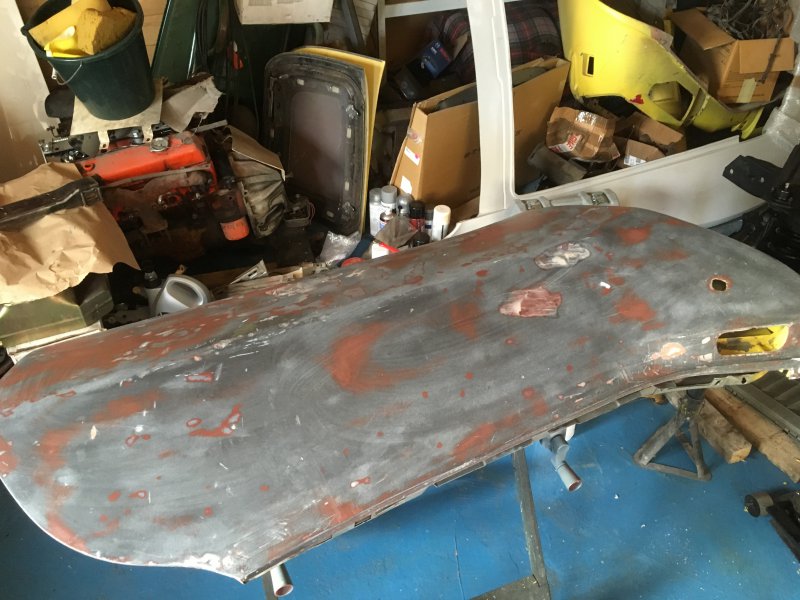

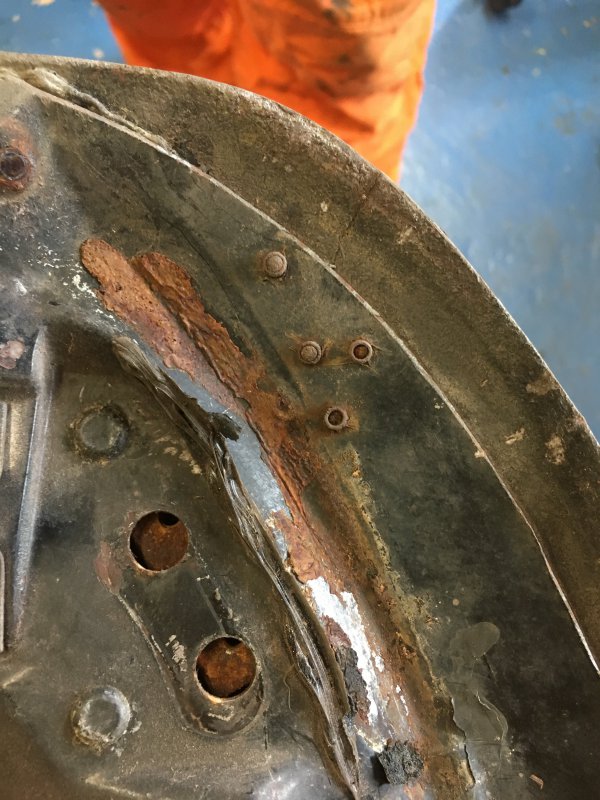

Roof panels and doors now striped, one more bodged repair to fix.

702037020470206

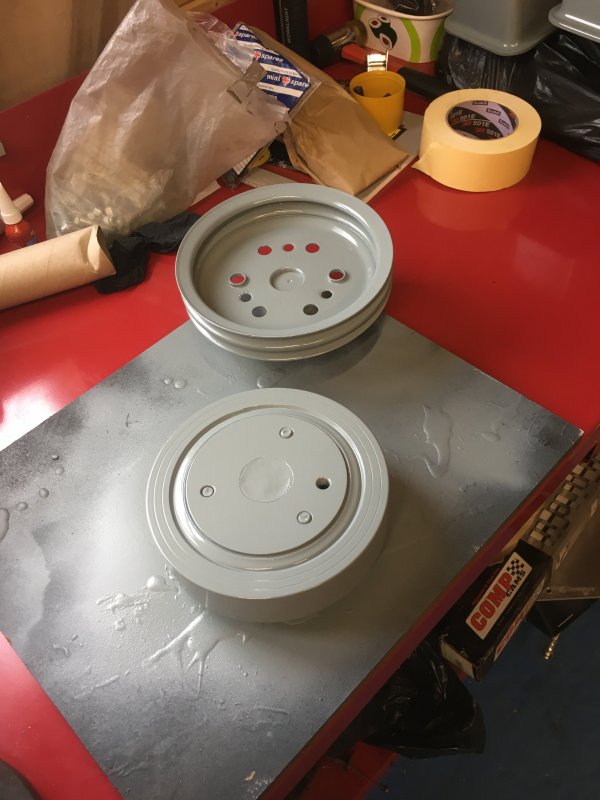

Hopefully as people are starting to go back to work the balancing shop will be open soon, so damper and pulley cleaned and painted

70211

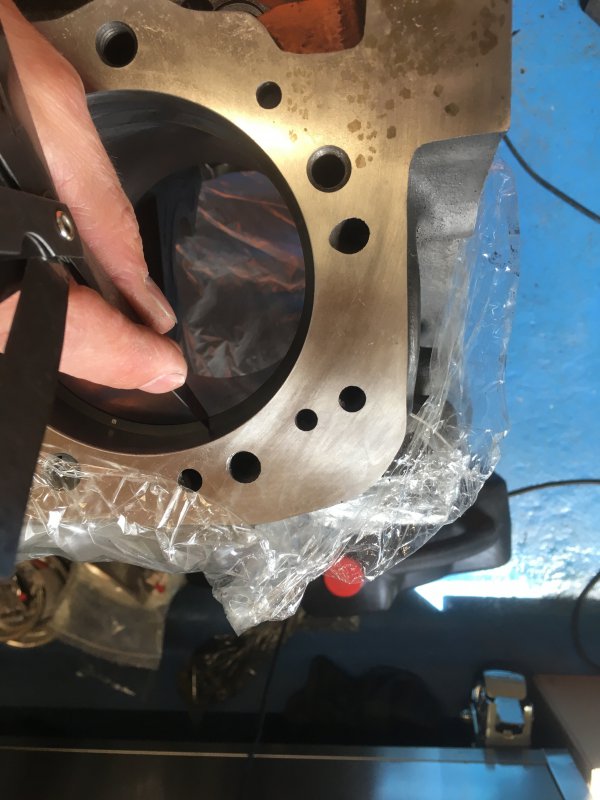

Compression rings checked for gap

70212

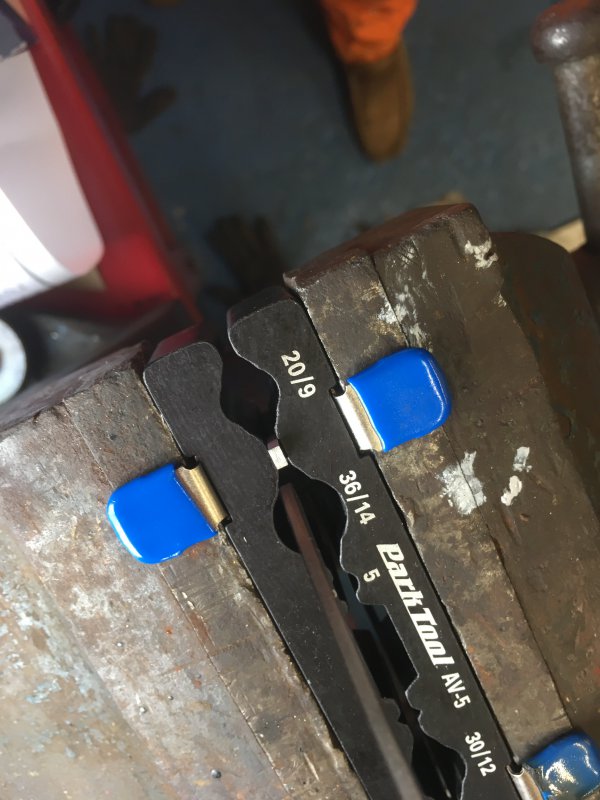

And filed to spec

70205

Oil rings checked too

70208

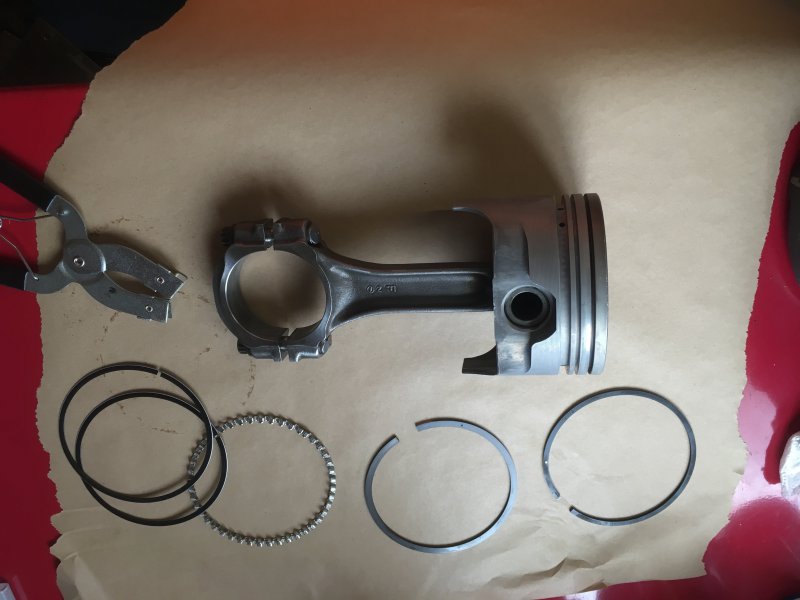

Piston and rod cleaned

70209

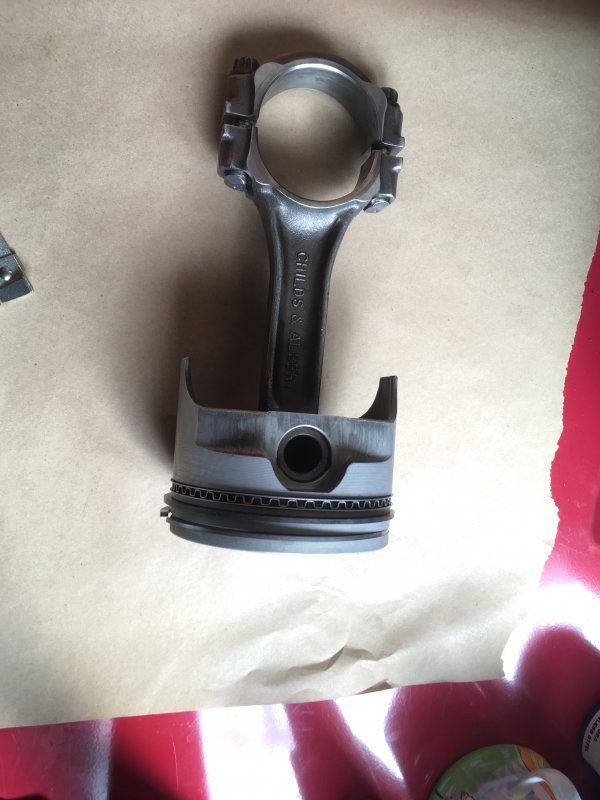

And assembled

70210


Only 7 more to go, 4 cylinder engines new have some advantages!


Oneball

Member
Messages
3,383

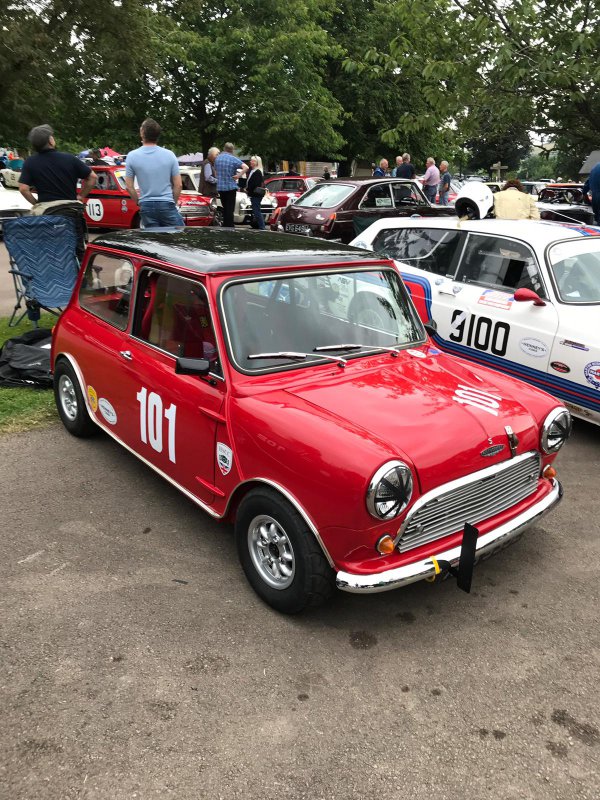

Mk1 real Cooper but not an S.

Over the years it’s been 1340cc, 998cc, 1014cc and now 1293cc

Started out as blue

70214

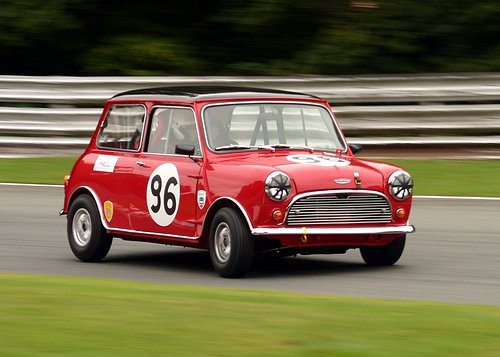

Gets used circuit racing mainly and the odd hillclimb

70217

And occasionally gets stuffed.

70215
70216


Oishi

Member
Messages
276
Oneball, I don't mean to be a pest, I am enjoying your rebuild very much, what kind of dampers are you going with? As you may know, there are two types of rear half-shafts, small or big block. Go with the BB ones if you can. I know she'll be sweet when you are done.


Oneball

Member
Messages
3,383
You’re not being a pest Oishi, it’s good to have your opinion.

I’ve got some custom half shafts made from chrome moly to the BB size.

Dampers wise. My best mate is a chassis engineer, worked on the Vantage and DB9 now runs his own company. He’s sourcing me a set of rebuildable Bilstein mono tubes.

We can run an adjustable twin tube or non adjustable mono tube. So as I’ve got the resource to tune a mono tube that’s what we’re going with.


Oneball

Member
Messages
3,383

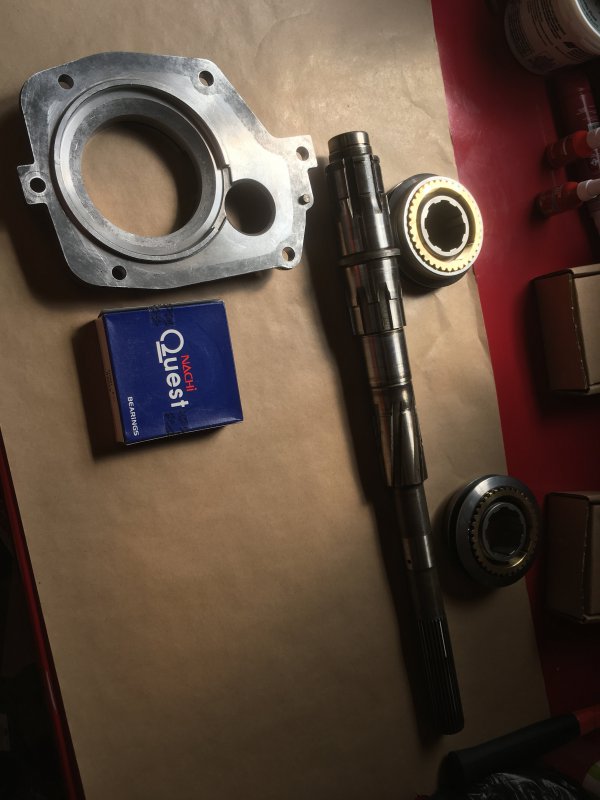

Got the new synchro hubs for the box this week, so ready to start rebuilding

70430

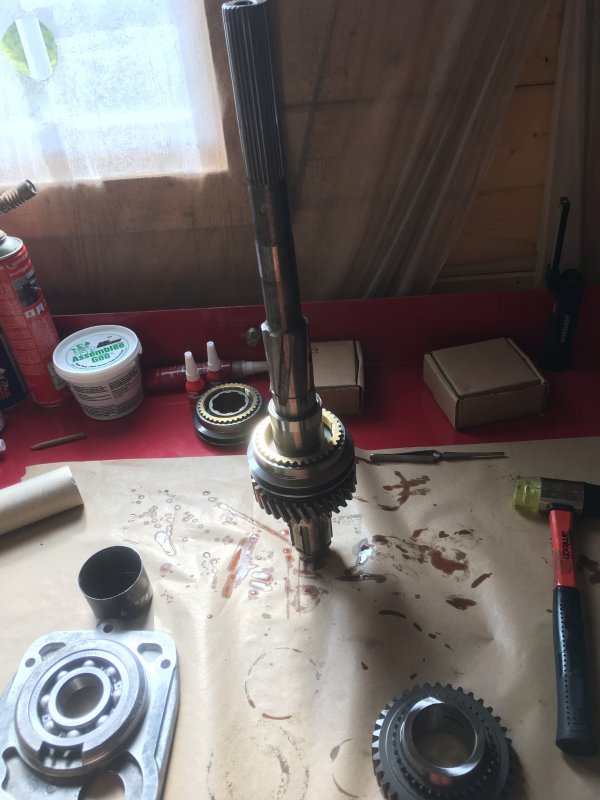

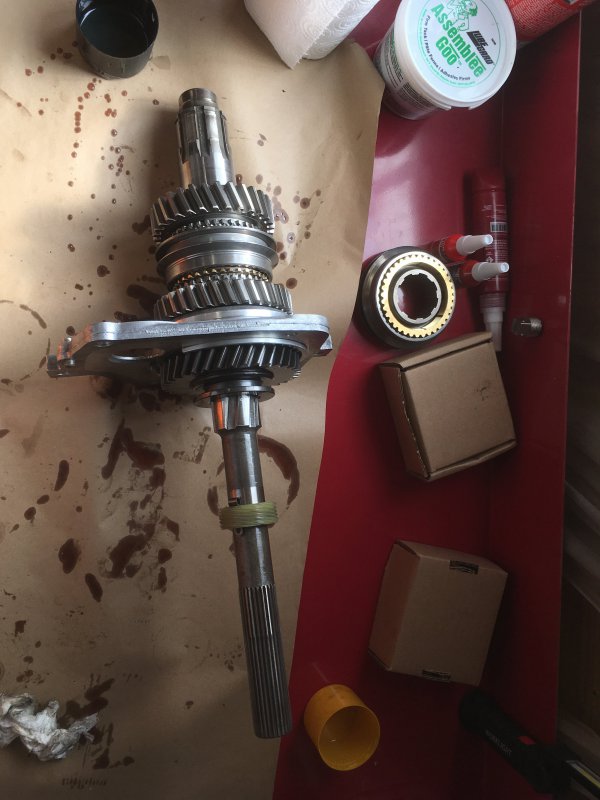

Mainshaft assembled with 2nd gear and 1/2 synchro assembly.

70431

1st gear, midplate and reverse gear added

70432

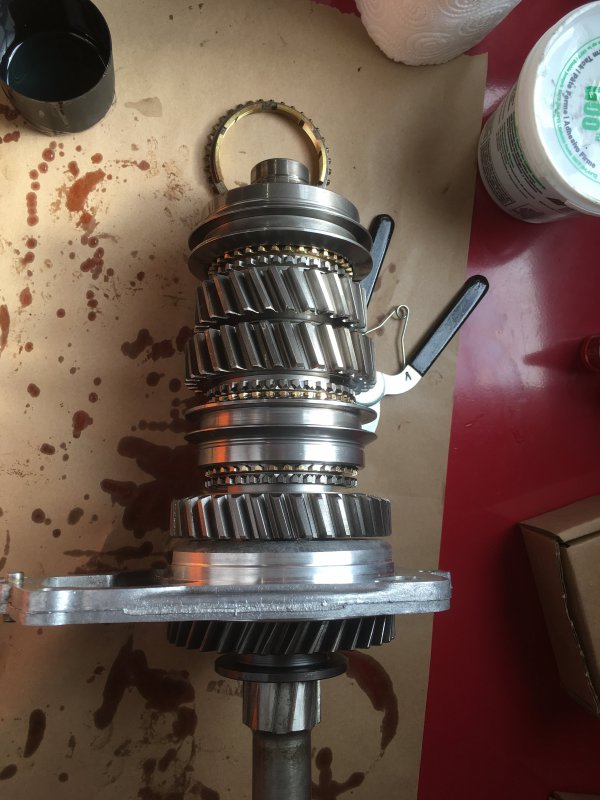

3rd gear and 3/4 synchro assembly

70433

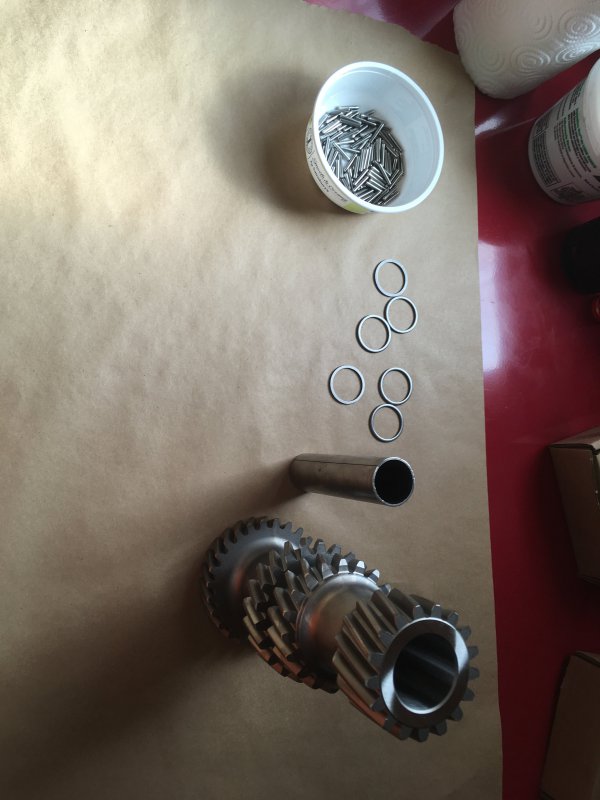

GM don’t seem to have heard of caged bearings :rolleyes:

70434

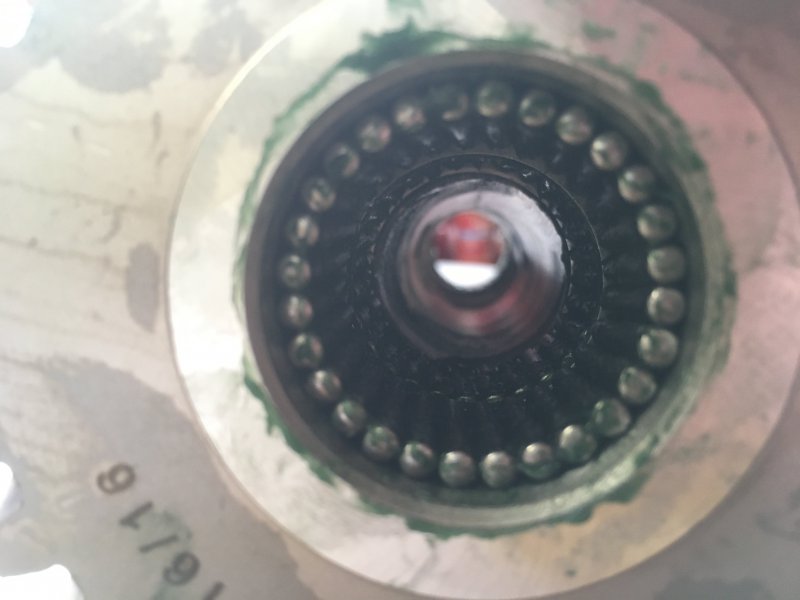

All 112 needles and six spacers installed.

70435
70436

And stopped again for lack of parts. The oil thrower for the front bearing is fractured and a new one wasn’t included in the bearing/gasket kit I’ve got so need to order from the US.

I’m not used to these boxes so don’t as yet know which bits to look out for being worn.


lifes2short

Member
Messages
3,116
that's so frustrating when rebuilding something and then grinds to a halt due to lack of parts and/or missing parts


Oneball

Member
Messages
3,383
that's so frustrating when rebuilding something and then grinds to a halt due to lack of parts and/or missing parts
I know but like the bits you got for yours when I ordered the new synchro bits from the States last week they were here in 4 days


lifes2short

Member
Messages
3,116
I know but like the bits you got for yours when I ordered the new synchro bits from the States last week they were here in 4 days
yup, bloomin amazing delivery times from EU and States, American poly bush got to me in 5 days from order


Oneball

Member
Messages
3,383
So first proper cock up today, well actually a while back. When I put the drain plug in the gearbox I ordered a 1/2” NPT tap but notIced today they’d sent me a 1/2” BSP one. Should have checked before using it. So the hole in the box isn’t tapered and has a different thread profile to the plug.

70557

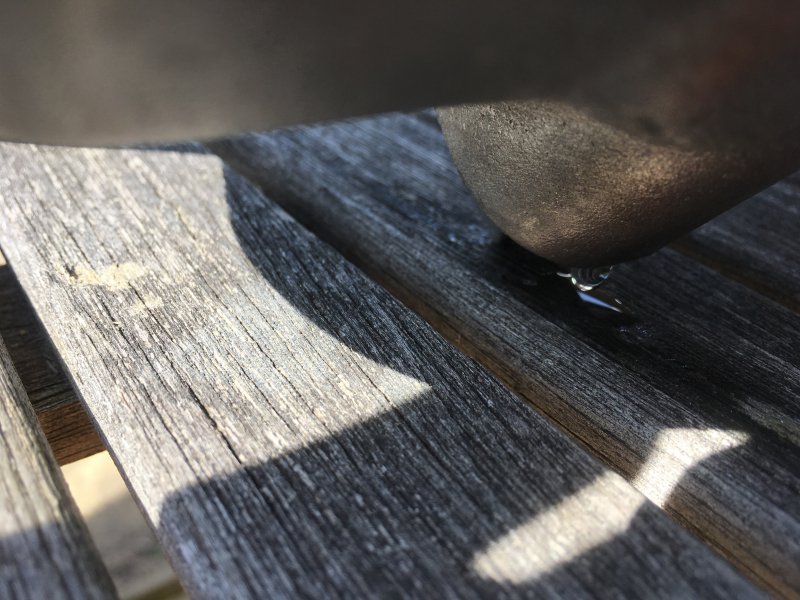

Yep it leaks. Fortunately it’s not assembled yet but got to work out what to do.

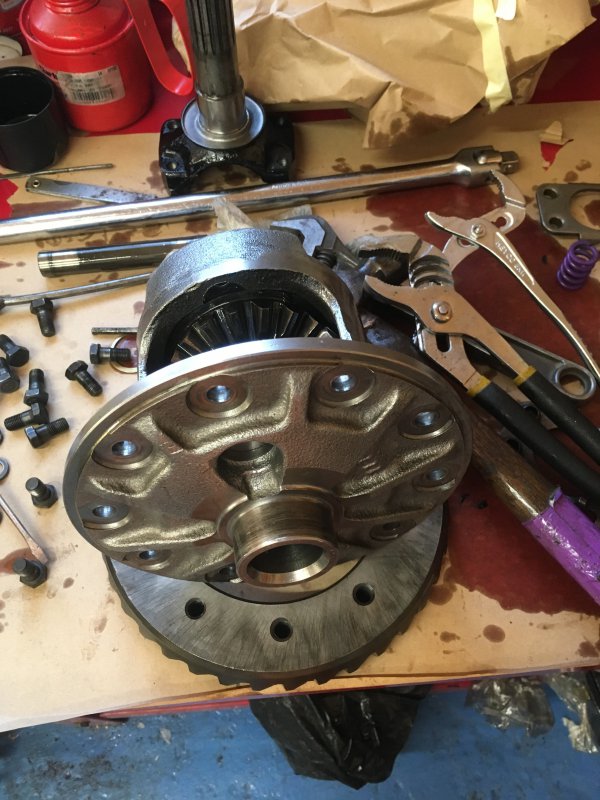

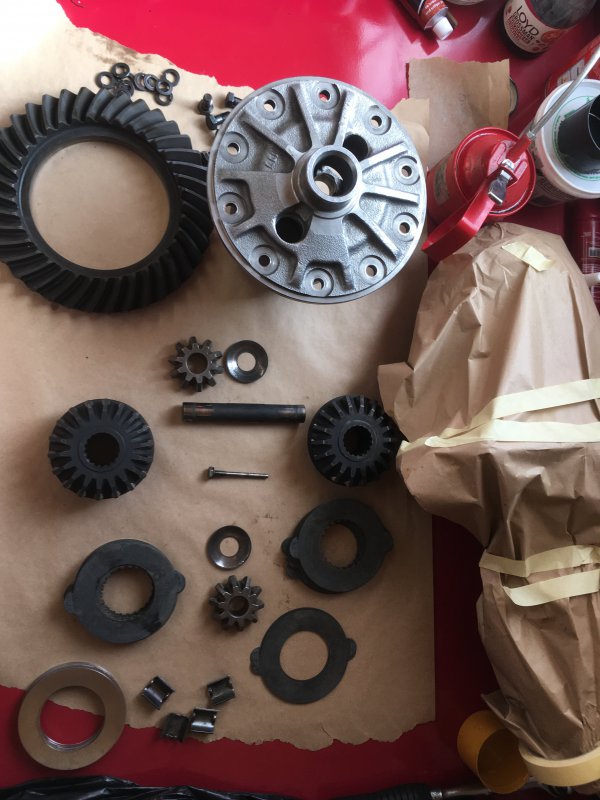

So diff cleaned and ready to go back together.

70549

New clutch packs stacked

70550

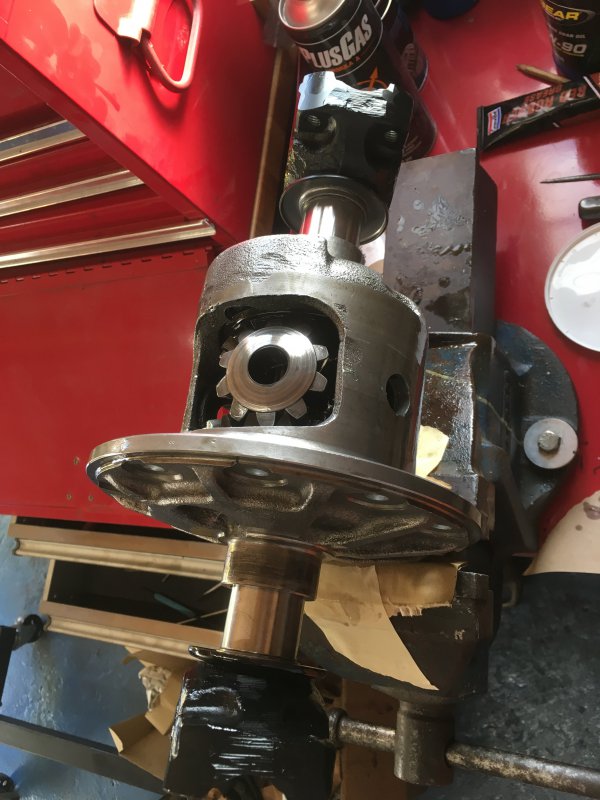

And in place with first spider gear

70551

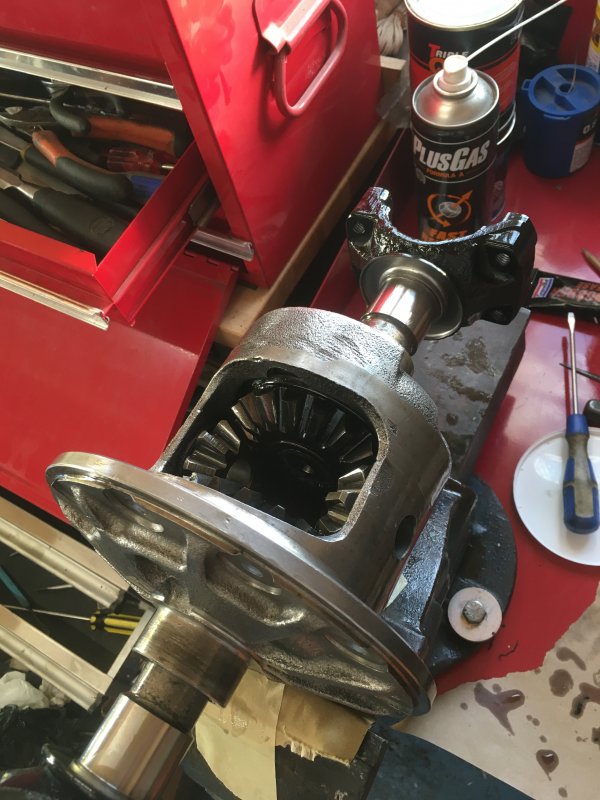

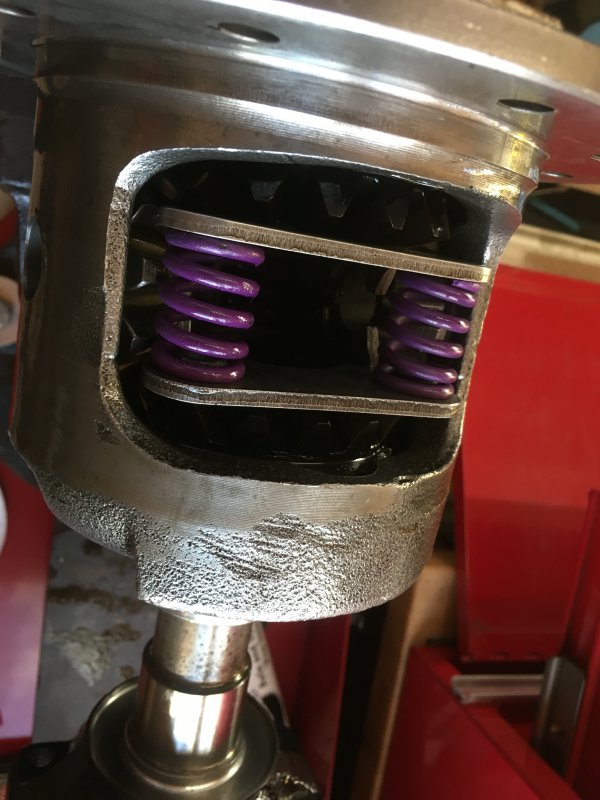

Second spider gear in place and spring pack in

70552

70553

Was about to get the dial gauge out to measure the lash in the spider gears but there’s so much with the original sized shims that I know it’s not right. So disassembly time again.

Good trick if playing with springs is to put a cloth over them so they don’t hit you in the face.

70554

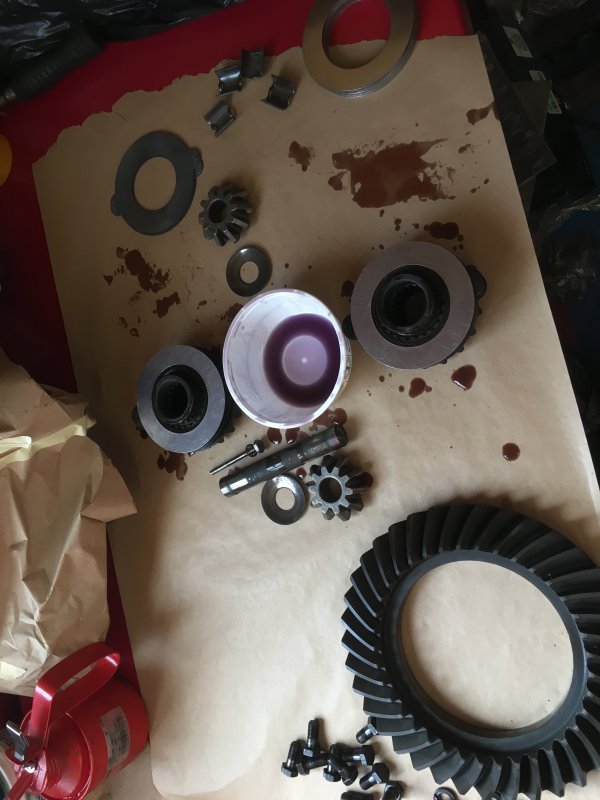

And apart again

70555

Cider time.
