Is that a Kawasaki triple?
The SBC 400 has siamesed cylinders and the block and heads have steam holes drilled to help cooling. Many builders over here add them to 350's to make them run a little cooler on middle cylinders. One of the reasons Webers make more power is tuning for each cylinder, with a single carby, you have to set the mixture for the hottest running cylinders (rich) and give up some hp.

Last edited:

Lozzer

Member
Messages
1,414
Picked up the crank from balancing today.

Dropped in and checked bearing to fillet radius clearance.
View attachment 73220

Caps on and torqued
View attachment 73222

And end float checked.
View attachment 73221

These two piece rear seals give me the willies, I’m going to be worrying about whether it’ll leak for the next couple of months.
A bit late now but are there not kits to convert the block to a one piece rear seal like post '86 blocks?


Oneball

Member
Messages
3,885
A bit late now but are there not kits to convert the block to a one piece rear seal like post '86 blocks?
Crank is different too.

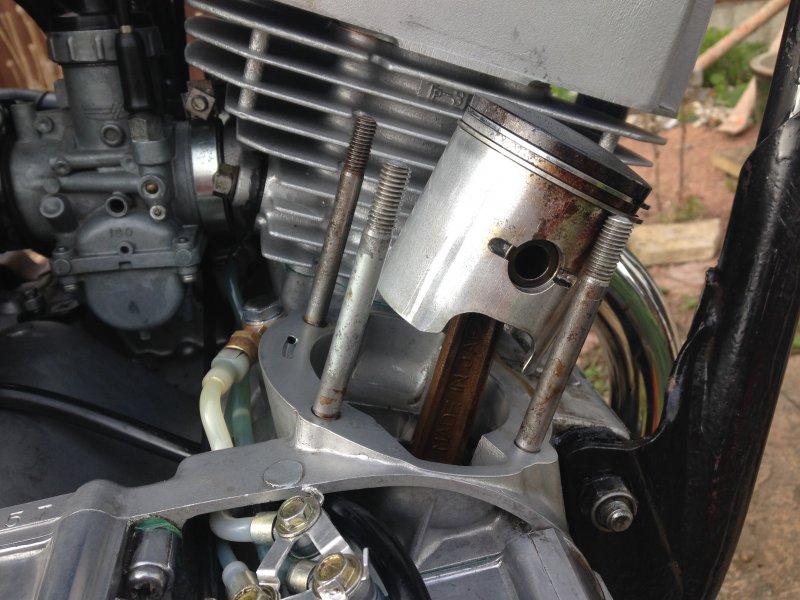

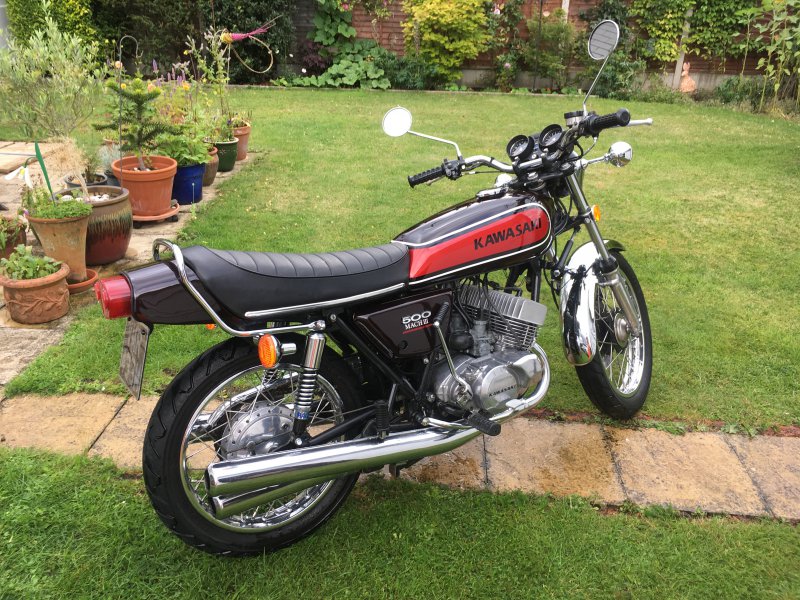

Is that a Kawasaki triple?
The SBC 400 has siamesed cylinders and the block and heads have steam holes drilled to help cooling. Many builders over here add them to 350's to make them run a little cooler on middle cylinders. One of the reasons Webers make more power is tuning for each cylinder, with a single carby, you have to set the mixture for the hottest running cylinders (rich) and give up some hp.
This block has an extra hole in between the centre bores to try and even the cooling out. Think it was standard on later Bow Tie blocks

Yep Kwak H1. Sold it last year.

73359


Oneball

Member
Messages
3,885

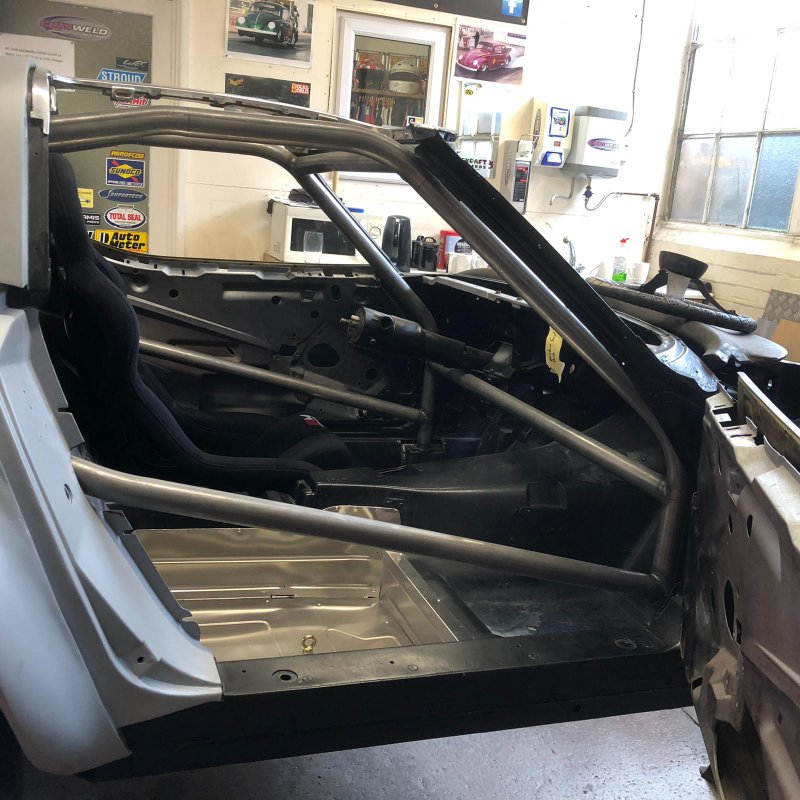

I’m reckoning that autocross is a bit different in the States then.


Oneball

Member
Messages
3,885

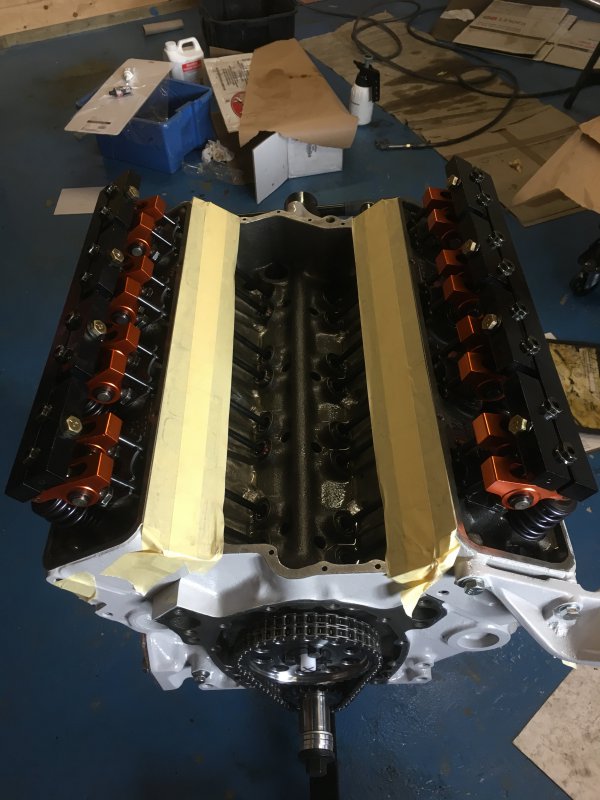

nice rocker arms
Kinda but they’re getting round a problem that shouldn’t exist.

Look at a 1930s Chevy six and it’s got bushes rocker arms that pivot on a shaft. When they designed the small block V8 in the 1950s they went to a stud pressed into the head with a ball the rocker moved on. Proper shite.

73683

So roller rockers to sort friction and the stud girdle to keep it in place, studs are at least screwed into the head on mine.


RobinL

Member
Messages
342

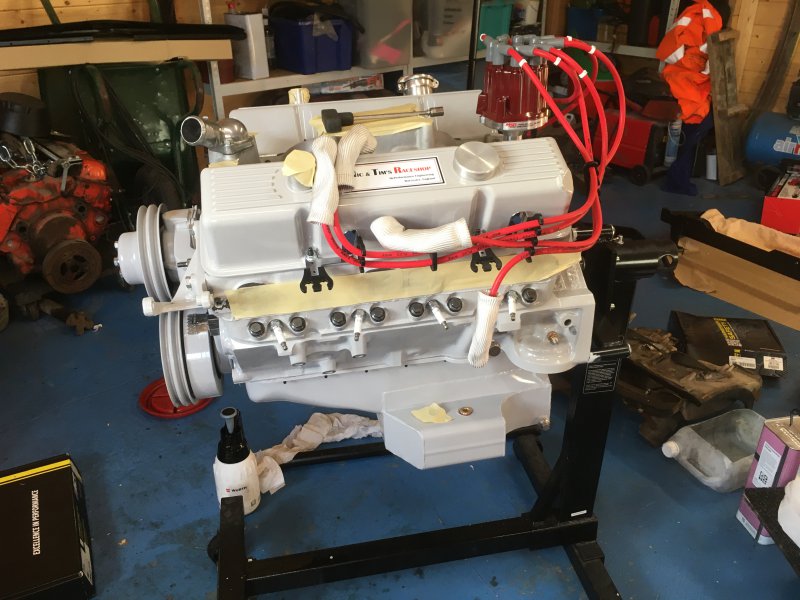

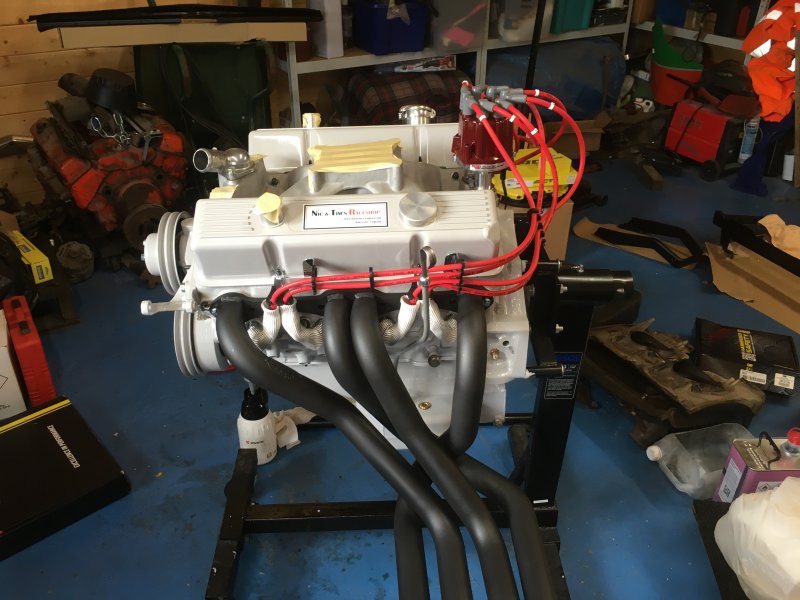

That's shaping up as a really pretty build. Proper. Like others I'm waiting on the start up soundtrack
