Steering Wheel Buttons

[Torenno Performance]

Wierd this one, as ive not heard of it before nor has my Indy.

The button on my Steering wheel have stopped working, the buttons dont light up and they dont function.

This started off as a intermittent problem but now seems to be permanent. I have checked the fuses and all seem to be fine

Any ideas?

Thanks

Noor



[ENZ525]

Noor,
have not come across this before...
apart from checking all the fuses, you could try a battery disconnect,
I don't know if this will help, and you will also need to get the system to carry out some self-learning operations once the battery is reconected to ensure certain devices are recognized by the system again, so you may want to have it checked out properly, just a thought...
Enzo.

Once you reconnect the battery negative terminal,

Throttle self-learning
Set the ignition switch to ON (KEY ON) and wait at least 15 seconds.
start the engine and let it idle for about 15 seconds.

Central Door Locking
Perform a door LOCK /UNLOCK operation with the remote control

SUNROOF:
Sunroof closed and key ON
Rotate the selector switch fully to the maximum tilting position
press the selector switch and, keeping it pressed, wait for the sunroof to lock mechanically
release the selector switch
within 5 sec. press the selector switch again and keep it pressed
after a few seconds the sunroof will start an automatic cycle (keep the selector switch pressed)
at the end of the movement, the initialization is complete
release the selector switch

IT Node (NIT) and CLOCK:
When the NIT is switched on, the NIT code must be entered:
Using the knob on the right, enter the four-digit (radio) code which will enable you to unlock the navigator.

Others
You may also need to adjust the time, date, and info shown on the instrument panel



[Torenno Performance]

Enz,

Have already tried the fuses and the battery reset, guess ill have to find sometime and get it in to an Indy.

Thanks

Noor



[Tamariini]

Wierd this one, as ive not heard of it before nor has my Indy.

The button on my Steering wheel have stopped working, the buttons dont light up and they dont function.

This started off as a intermittent problem but now seems to be permanent. I have checked the fuses and all seem to be fine

Any ideas?

Thanks

Noor

It's an old post but i have same problem on mine. None of the steering wheel buttons work (except the horn). All the fuses are ok.

Any solutions on this issue?



[CatmanV2]

It's an old post but i have same problem on mine. None of the steering wheel buttons work (except the horn). All the fuses are ok.

Any solutions on this issue?

Clock spring is always a favourite

C



[Mass]

It's an old post but i have same problem on mine. None of the steering wheel buttons work (except the horn). All the fuses are ok.

Any solutions on this issue?

replace the steering wheel buttons, I tried and fixed.



[CatmanV2]

....or the clock spring

C



[Tamariini]

replace the steering wheel buttons, I tried and fixed.

Did this, now buttons are working. Except for the "INFO" -button. I can not figure out what it should do Nothing happens



[Devonboy]

I had this.....I upgraded to a carbon fibre steering wheel from a breakers and all was well thereafter



[Bladerunner]

Just to resurrect this thread for the 2nd time…

Same symptoms on my 2013 GT, intermittent steering wheel buttons which eventually were inactive more than on.

Took it to Autoshield, changed out the buttons with a spare set and no fix but on inspection of the clock spring there was a loose connection and think it caused a short, in turn causing the clock spring to die.

A replacement clock spring fitted and all back up and running!

Just wanted to note a fix since I’ve seen a few posts with people not always finding a solution - this worked for me.

Thanks to Marios, Russ and team as always and for Conaero on the pointer to the Clock spring



[CatmanV2]

Just to resurrect this thread for the 2nd time…

Same symptoms on my 2013 GT, intermittent steering wheel buttons which eventually were inactive more than on.

Took it to Autoshield, changed out the buttons with a spare set and no fix but on inspection of the clock spring there was a loose connection and think it caused a short in turn causing the clock spring to die.

A replacement clock spring fitted and all back up and running!

Just wanted to confirm a fix since I’ve seen a few posts with people not finding a clear fix - this worked for me.

Thanks to Marios, Russ and team as always and for Conaero on the pointer to the Clock spring

Clock spring is the obvious one but there seems to be a thread of failure with the actual buttons and chips around them. Certainly quite a few in Leftpondia. Typically the illumination on the buttons starts to flash when cold, and it gets worse before ultimate failure.

An odd one

C



[Bladerunner]

True @CatmanV2 but I had similar with the buttons flashing before eventually stopping working all together…I think this is the same common symptom on their way out if the connection has come loose which explains the sometimes on/sometimes off issue too



[CatmanV2]

True @CatmanV2 but I had similar with the buttons flashing before eventually stopping working all together…I think this is the same common symptom on their way out if the connection has come loose which explains the sometimes on/sometimes off issue too

Good to know. Thanks

C



[Neptune.]

For whoever might read this in the future:
Remove the buttons from the steering wheel. There is a little PCB with many electronic components on it.
Desolder the two electrolitic capacitors and replace them with new ones with the same capacity value (10 micro Farad). The voltage figure doesn't matter as long as it is superior or equal to the original one.
For example, you can fit two 50V rated capacitors as long as they have a capacity of 10 microFarad, it will work (which is what I did, because that's what I had in my drawer).
These things are polarity sensitive, so make sure you orient them the right way

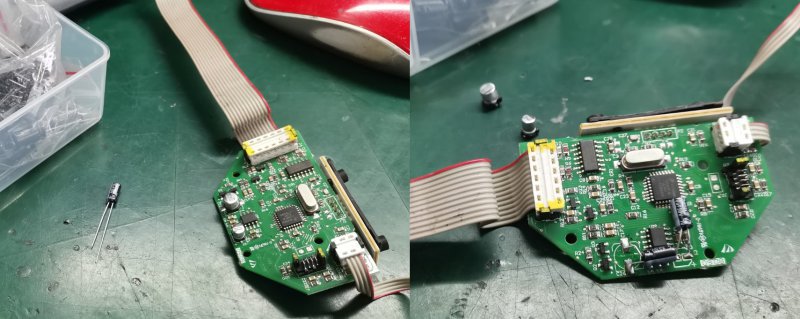

A pic of the PCB before with the original capacitors (left) and after with the replaced ones(right). Notice that they don't even need to look the same:




These two capacitors are part of the circuit that converts the 12V from the battery to the 5V and 3.3V necessary to run the little microcontroller.
When they die, the power conversion becomes erratic and unstable and nothing works anymore.
In my case, replacing these made the buttons work fine again.

Hope that helps.



[CatmanV2]

This has been reported elsewhere as a fix, so good stuff!

C



[conaero]

That’s great work.

Send me your address I have a box full of knackered Maserati electronics.



[13MGTS]

For whoever might read this in the future:
Remove the buttons from the steering wheel. There is a little PCB with many electronic components on it.
Desolder the two electrolitic capacitors and replace them with new ones with the same capacity value (10 micro Farad). The voltage figure doesn't matter as long as it is superior or equal to the original one.
For example, you can fit two 50V rated capacitors as long as they have a capacity of 10 microFarad, it will work (which is what I did, because that's what I had in my drawer).
These things are polarity sensitive, so make sure you orient them the right way

A pic of the PCB before with the original capacitors (left) and after with the replaced ones(right). Notice that they don't even need to look the same:


View attachment 137335

These two capacitors are part of the circuit that converts the 12V from the battery to the 5V and 3.3V necessary to run the little microcontroller.
When they die, the power conversion becomes erratic and unstable and nothing works anymore.
In my case, replacing these made the buttons work fine again.

Hope that helps.

Signed up just to comment on this.
Buttons don't work for me and the backlighting on the buttons intermittently comes on and off (flicker) when driving at night.
Had a feeling it might be something like caps that need replacing. Good to know this fix is pretty simple!
