QP Festive Dashboard Lights (Transmission fault, go to dealer - Error Code P2637)

conaero

Forum Owner
Messages
34,593
Using a multimeter the results are in, although they're not as clear cut as I was hoping they'd be... what do we think? I'm comparing them against Matt's benchmarks from here: https://www.sportsmaserati.com/index.php?threads/battery-or-alternator-issues.35912/post-939938

Car off (battery fully charged with CTEK): 12.08v
Cold start: 14.26v
Warm start: 13.73v

With the engine running the only warning light that remains is the yellow check engine light. Following the voltage testing I performed a battery disconnect, unfortunately the check engine light persists.

View attachment 110032
Your alternator outputs are spot on but the battery seems low.

Batteries fail so much we are thinking of stopping supplying them.

Try an AGM and Varta seem to last the best. Mind, my Exide in the Strad must be 4 years old now and still good and we had an Exide AGM fail in a Ghibli.

Maybe time to knock Exide on the head?


jasst

Member
Messages
2,313
I had an exide in the GS, only lasted a year, they don't like being run pretty flat, will not recover. In my 4200 it came with a Banner battery I think it was, that went down to 3v once, had to put it on industrial charger to get it back up to strength, but it was fine after that.


makeshiftUK

Member
Messages
1,089
Picked the car up from AV today, problem solved! Here's the full story in the hope that it helps someone else that finds themselves in my position.

I had the car recovered a few weeks back, not wanting to chance 50 or so miles and the risk of losing all but one gear along the way... a pic of that will be going on the low-loader thread shortly!

110902

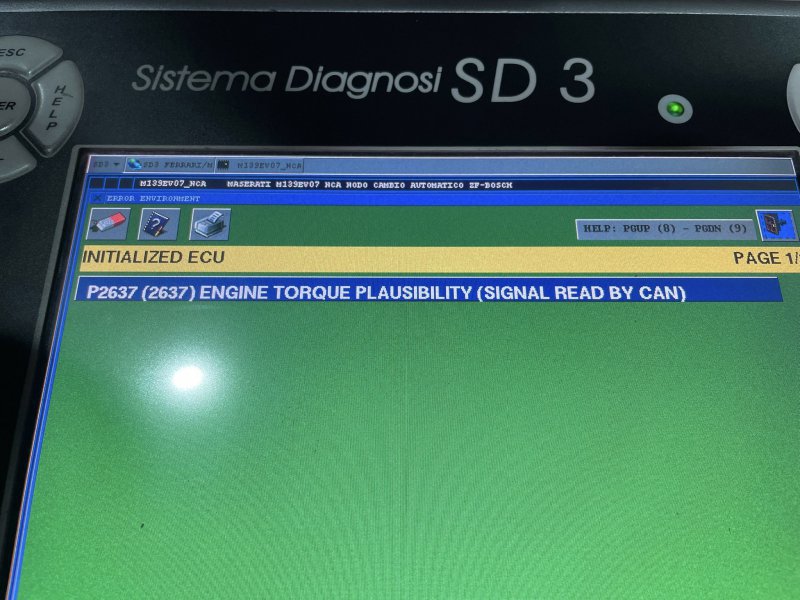

With the SD3 plugged in she was showing code P2637 - the gearbox's process of managing the engine rpm downwards during gear upshift, as I understand it, wasn't being allowed to happen given the engine wasn't able to support this request at the time of the issue. This suggested to us that something is happening further upstream i.e. within the engine to cause the transmission to throw a code... which kind of figures given the ZF is known to be a generally reliable unit.

110900

The check engine light/dashboard warning messages would come and go intermittently, so the challenge would be to capture this issue upon occurrence and see what other error codes are reported at the time.

After two long drives, nothing. The issue happened to me about 45-60 mins in urban, stop/start traffic, and we tried to replicate this to get the error to resurface. However, the next day when AV was moving cars around his workshop, with the engine running and car stationary, the dashboard does it's Xmas tree thing again... and because the gearbox wasn't doing anything at this time we have even more reason to believe the transmission isn't the root cause.

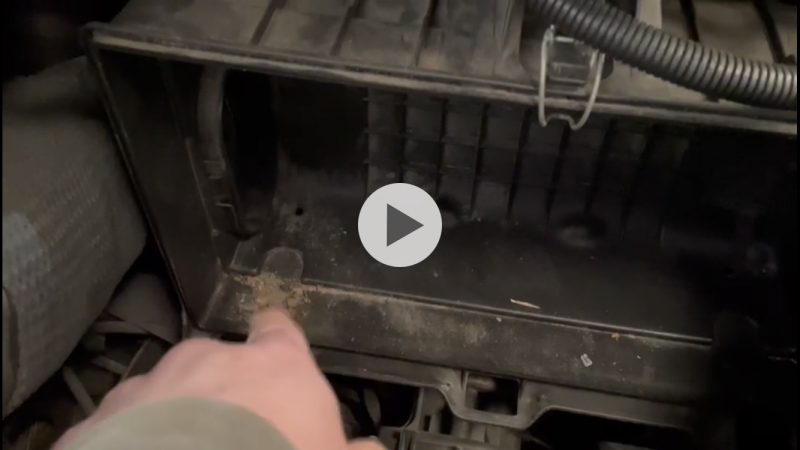

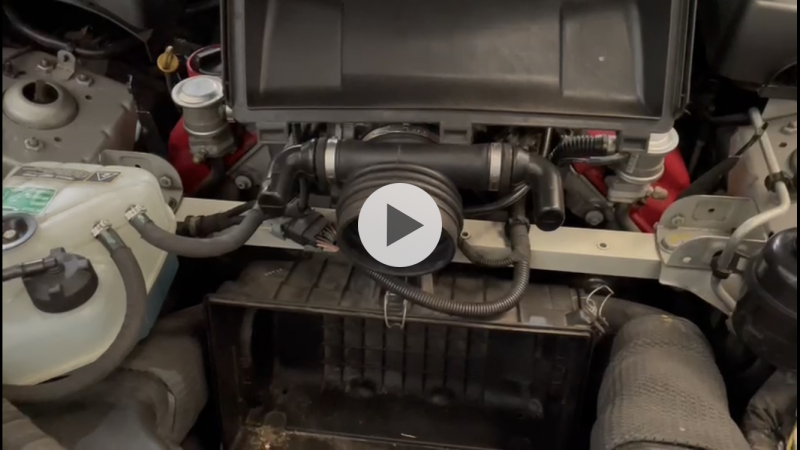

What we did see was an error relating to the air flow sensor and, when taking the air intake system apart, it was clear that there was evidence of dirt ingress which seemed to be resulting from bad fitment of the air filter... apparently dirt getting in is what damages these sensors. These are stills taken from a video AV sent, please excuse the centre play icon...

110905

110903

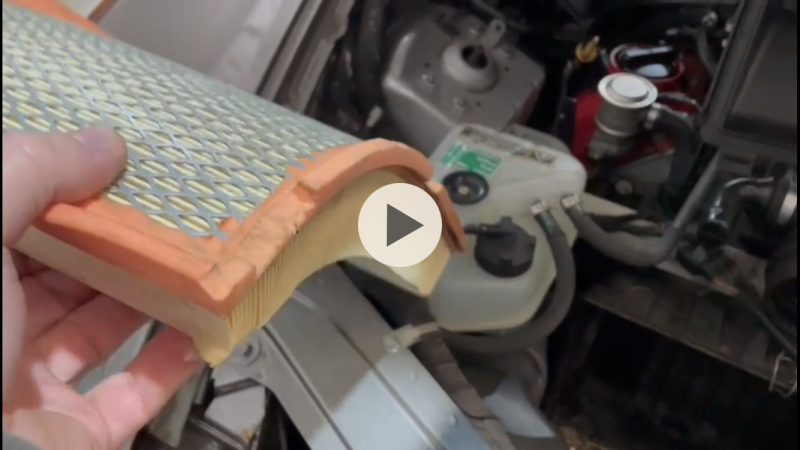

Here's the chewed up air filter, with chunks missing out of the lower edge.

110904

With the air flow sensor fitted and a few long journeys under her belt since then, I'm pleased to report all seems well again :) I still can't get over how vastly unrelated a transmission fault is to the replacement of an air flow sensor, although I'm massively grateful it wasn't anything major...


mowlas

Member
Messages
1,728
Thank you very much for sharing this @makeshiftUK and so glad to hear it has been fixed.

Out of interest, would you happen to know if replacing the air flow sensor is something us amateurs could easily get to and do?


makeshiftUK

Member
Messages
1,089
Thank you very much for sharing this @makeshiftUK and so glad to hear it has been fixed.

Out of interest, would you happen to know if replacing the air flow sensor is something us amateurs could easily get to and do?
It looks straight forward - I have the old air flow sensor on my desk, it's secured in with two screws and it doesn't look like you even have to remove the airbox assembly to get to it. But, you'll have to remove the assembly if you want to check the filter is fitted properly and not chewed up like mine was.
