Wanted 4200 facelift F1 dashboard 67706327

[CatmanV2]

Thats brilliant Catman many thanks.
I am not at all mechanically minded and I am pretty sure the F1 pump is on its way out too so probably wouldnt chance the journey.
Will let you know when the part comes in so can send more pics over if necessary.

Oh you don't need to bring the *car* Just the two units

Alternatively my mother is in a care home in Sandy, which is a *little* closer (and why I keep heading up there. so we could probably meet somewhere, or just pop them in the post.

I think the biggest issue is going to be getting a plug to connect to the new unit, but let's see.

C



[Geezer44]

Oh you don't need to bring the *car* Just the two units

Alternatively my mother is in a care home in Sandy, which is a *little* closer (and why I keep heading up there. so we could probably meet somewhere, or just pop them in the post.

I think the biggest issue is going to be getting a plug to connect to the new unit, but let's s



[Geezer44]

Thanks C.
I previously bought a dashboard from Greg Smith-he sent it out with the other part of the connector and part of the loom with it.
I could probably contact him if you think the one I have ordered not be any good?



[CatmanV2]

Thanks C.
I previously bought a dashboard from Greg Smith-he sent it out with the other part of the connector and part of the loom with it.
I could probably contact him if you think the one I have ordered not be any good?

I'm sure it'll be fine, but if you have the connector you bought from Greg it would make things simpler (and quicker) in terms of getting you back on the road

C



[Geezer44]

I'm sure it'll be fine, but if you have the connector you bought from Greg it would make things simpler (and quicker) in terms of getting you back on the road

C

He took both bits back and refunded my money-he is a decent man.
I should have reached out earlier when I was given the bad news instead of trying to fix it myself.
Maybe he will sell me the connector on its own if I am lucky....



[CatmanV2]

He took both bits back and refunded my money-he is a decent man.
I should have reached out earlier when I was given the bad news instead of trying to fix it myself.
Maybe he will sell me the connector on its own if I am lucky....

Worth an ask, for sure!

C



[EnzoMC]

i think i’ve got wire diag and im local so happy to assist if needed.
ive got metre so we can map out the connections. speak to forum to confirm our findings.



[Geezer44]

Hi Gents.

New F1 dashboard has arrived from Modena.
It arrived boxed up in what looks like a baby's blanket-bless!



[Geezer44]

Worth an ask, for sure!

C

I asked Greg if he still had the connector length of loom wire and unfortunately for me he's binned it......



[CatmanV2]

I asked Greg if he still had the connector length of loom wire and unfortunately for me he's binned it......

Let's have a photo of the underside of the new component then (with the connector)

C



[safrane]

Hope you can make it work!



[Geezer44]

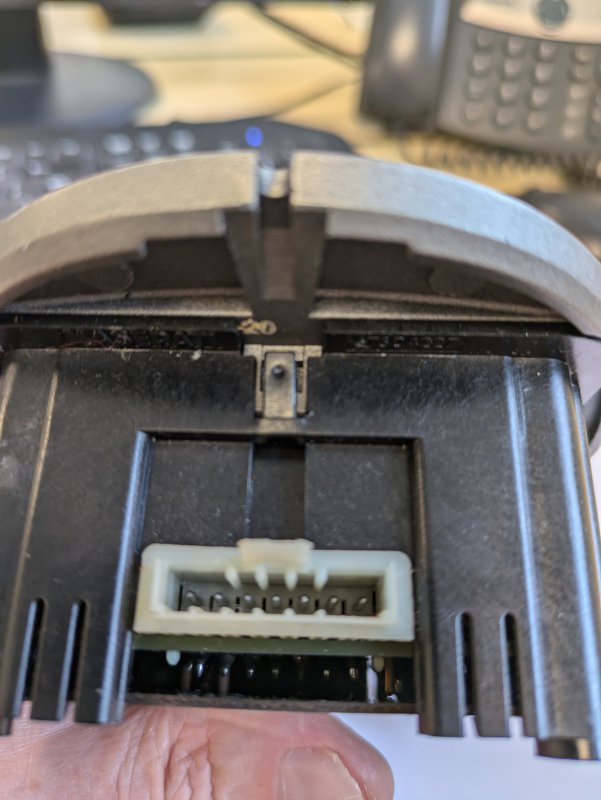

Let's have a photo of the underside of the new component then (with the connector)

C



[CatmanV2]

Doesn't look like it would be impossible to solder directly to those pins or even get some crimp on terminals that would fit.

Looks very similar to these:

https://www.molex.com/en-us/part-list/0074?taxonomyPathValueLast=Connector%20Housings&physical.circuitsMaximum=7

C



[Geezer44]

Doesn't look like it would be impossible to solder directly to those pins or even get some crimp on terminals that would fit.

Looks very similar to these:

https://www.molex.com/en-us/part-list/0074?taxonomyPathValueLast=Connector%20Housings&physical.circuitsMaximum=7

C

Hi C.
I have been looking to see if I can can get the other connector to wire up the new dashboard and had no joy.
Tried various breakers and Eurospares.
Would it be OK if I send you both units so you can see what you can do to get it working for me?
Regards,
Gary.



[CatmanV2]

Hi C.
I have been looking to see if I can can get the other connector to wire up the new dashboard and had no joy.
Tried various breakers and Eurospares.
Would it be OK if I send you both units so you can see what you can do to get it working for me?
Regards,
Gary.

More than happy to have a crack, chap

DM me?

C
