User manual page for Spyder 89 engine compartment relay

Maurizio

Junior Member
Messages
48
Hello.

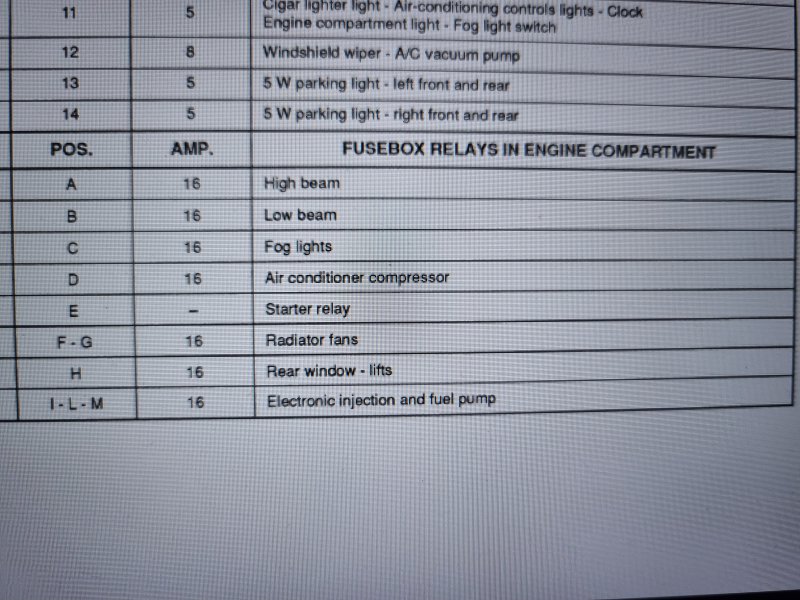

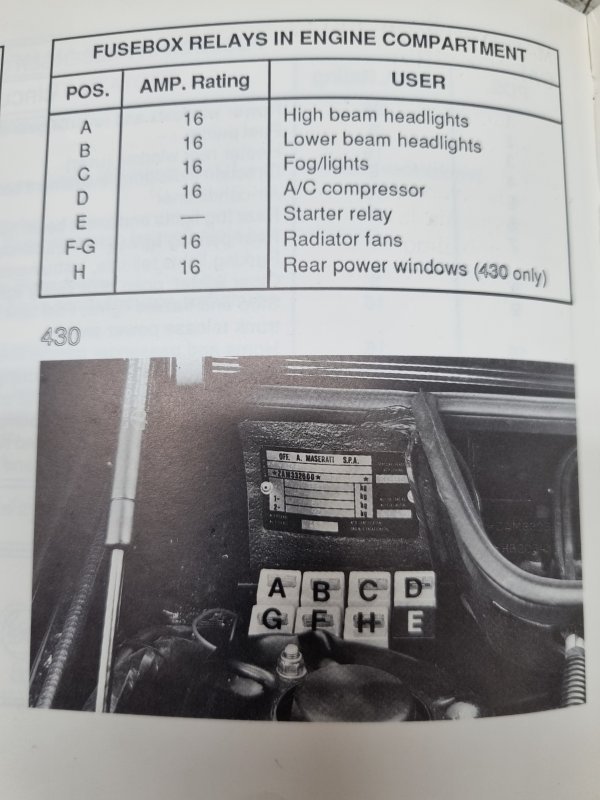

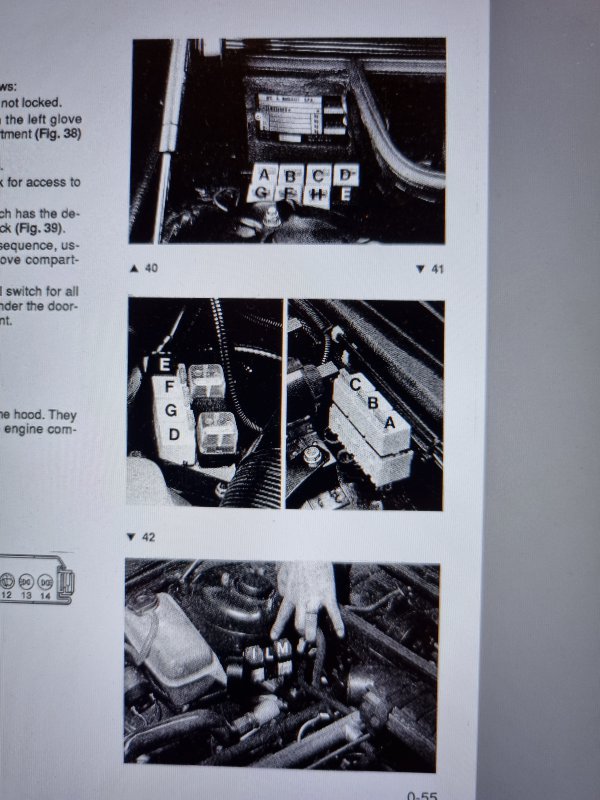

Can anyone be so kind, if possible, to post a snapshot of the manual page, for a spyder 90 2.8l, that details the function, and the correct fuse value, for the relays in the engine compartment?
Thanks in advance.
110883


alpa

Junior Member
Messages
105
The trouble is that even if you have the list of relays you never know which one is where. Because people move them around when desperately trying to fix the mysterious phenomena named "car electricity".
I guess:

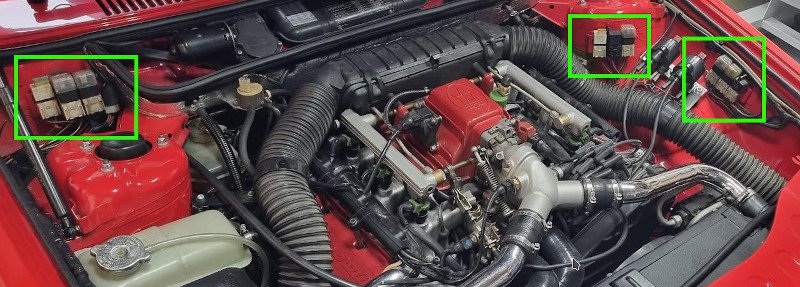

on the left of the picture: 2 for rad fans, 2 for front lights, 2 for long front lights (don't know the exact name), 1 starter (without fuse), 1 A/C compressor (if it's there and not on the right side, see below)
right-left: engine management: 1 injection ECU, 1 ignition ECU (without fuse), 1 relay for fuel pump + idle valve (key ON will switch off 9 seconds later if engine not started).
right-right: I guess the factory kit of additional relays+fuses for windows (1 relay) and cabine A/C bloc (1 relay). The third relay may be for the A/C compressor if it's not in the left set.


Maurizio

Junior Member
Messages
48
Yes, I suggested to the owner of the car to try to see which relay was corresponding to what function, first, by unplugging them.
In any case, it looks like they are all specified as 16A.
Thank you
