Ghibli non abs wiring

granca69

New Member
Messages
6

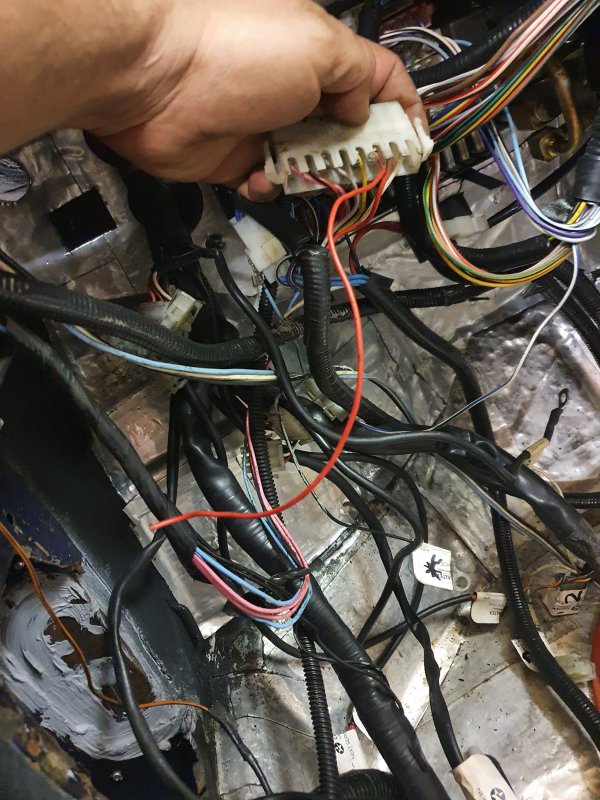

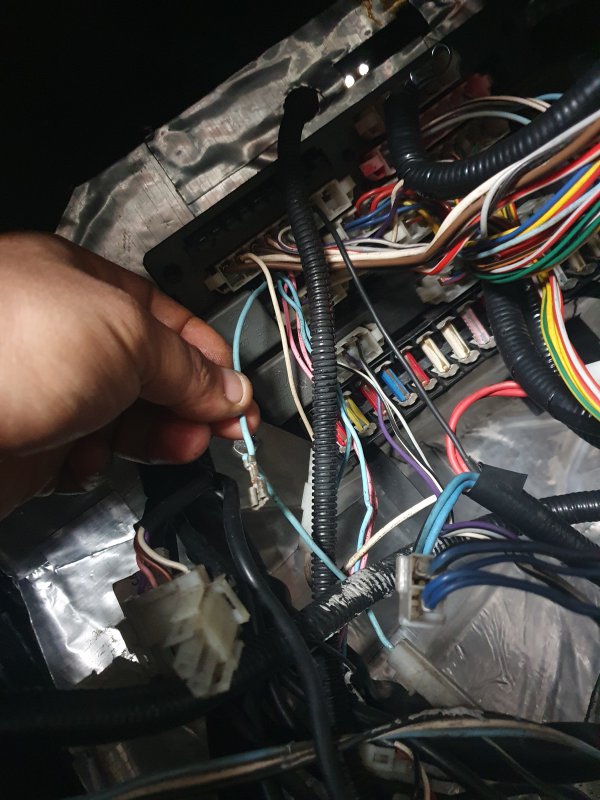

hi guys, need a bit of a hand if possible. SO long story short. my car is a 94 non abs Ghibli. heater box was stuffed, took it all apart repaired etc. took photos of everything and drove over my phone with a 10 ton machine with no backup. Great idea. so ive worked out the majority of the wiring but got a few wires that were cut and cant recall where they go. these photos are of the inside of fusebox. i need to know where the third wire from the right on the top left plug goes, also the light blue cable with the crimp on connector731987320073198


Attachments

dt95aac

Junior Member
Messages
52
Do you have the wiring diagrams?

If not I think I have them somewhere, pm me an email and I can send them over.


granca69

New Member
Messages
6
can anyone tell me how the jaeger module mounts, is it bolted to the dash board or the car skin, having trouble working it out
