Windscreen wipers

rd993

Junior Member
Messages
110
#41
Ok here we go:

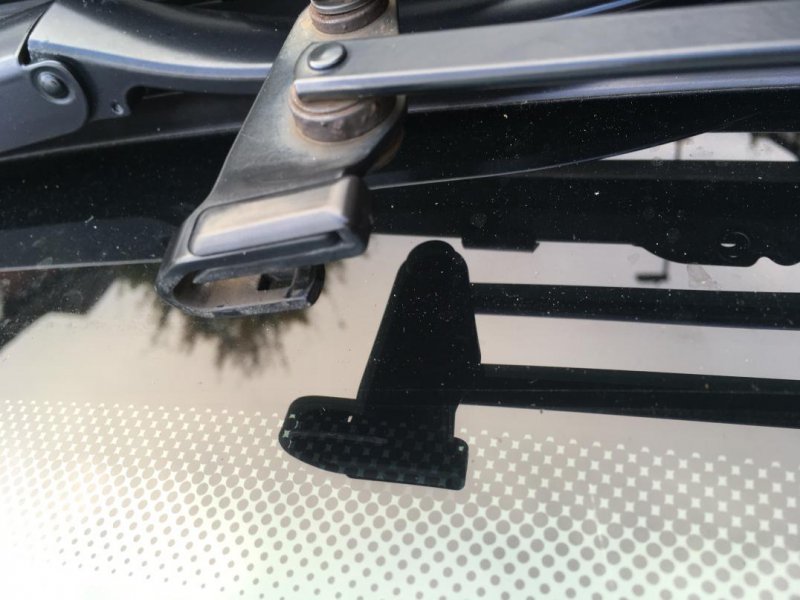

1. Remove the old wiper and the OEM connector. It will look like this - I will call this the wiper arm "hoop":


2. Then disconnect the bosch connector from the bosch wiper - I have put it next to the wiper arm hoop in this photo:

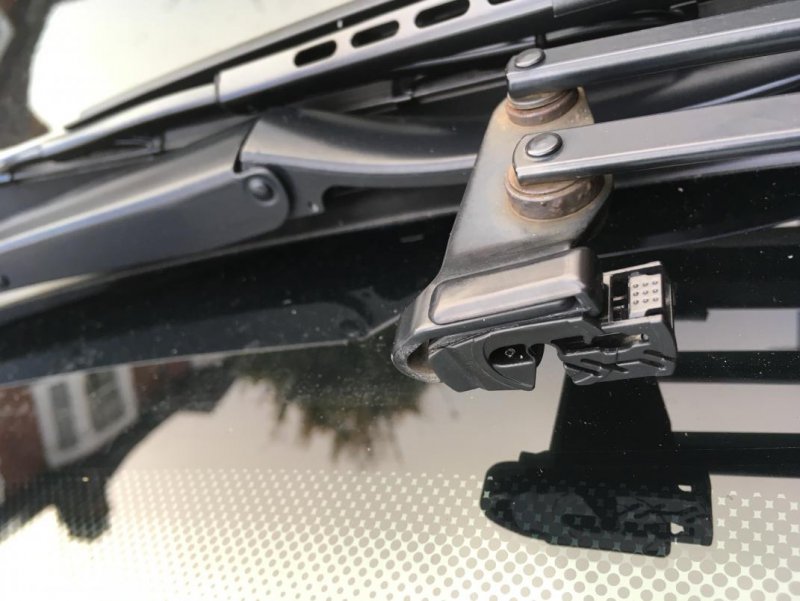

3. Then insert the bosch connector into the wiper arm "hoop" half way - see picture below:


Please note that if you insert it any further into the hoop the bottom part of the hoop will prevent you attaching the bosch wiper to the bosch connector.

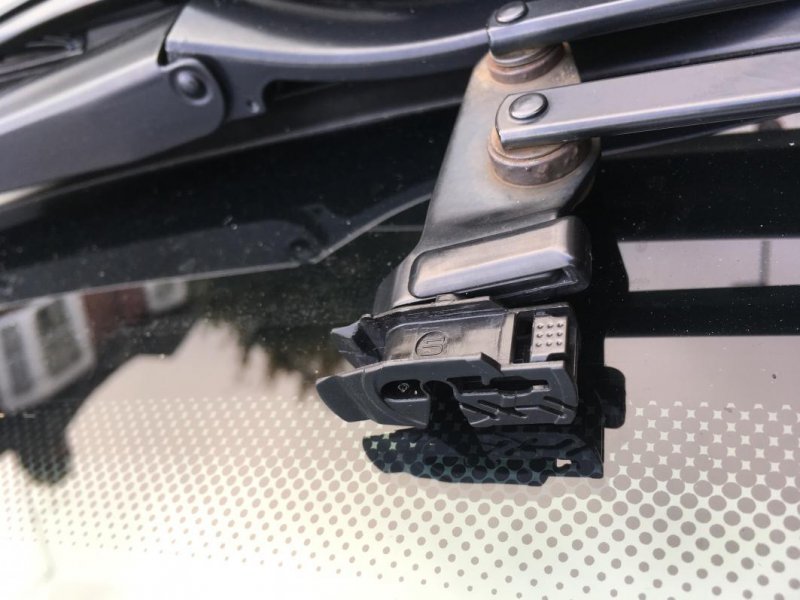

4. Then clip on the bosch wiper to the bosch connector - see photo below:

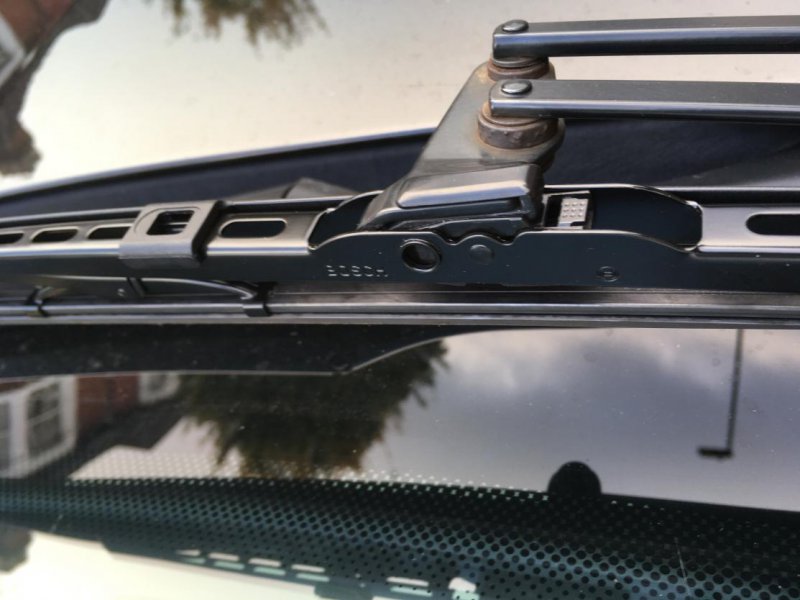

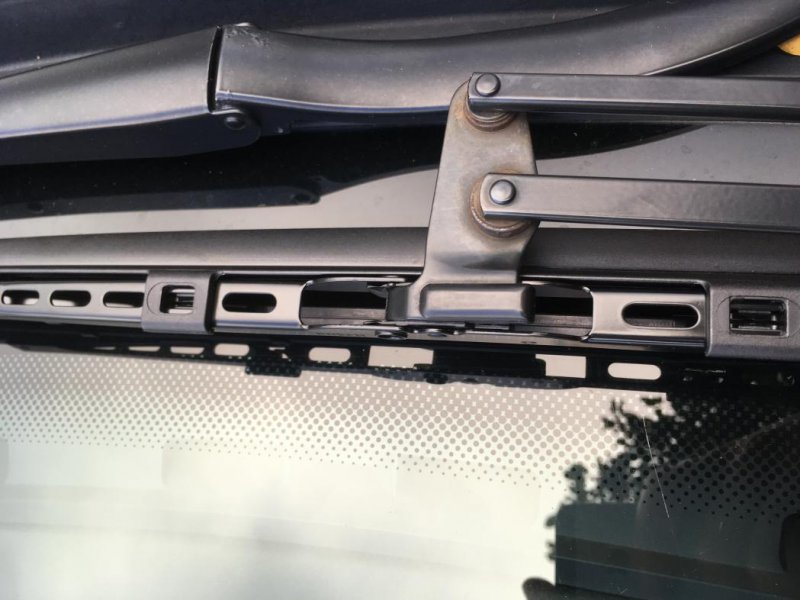

5. Then push the bosch connector fully into the wiper arm making sure the wiper arm hoop goes through a gap in the connector and you will hear a click:


Hope this helps! Also hope the photos attached correctly...


rd993

Junior Member
Messages
110
#44
No probs. Imagine it is the same with the GT. Ought to say that the passenger side wiper arrived. I’d ordered the SP17 but think it is slightly small. Now ordered the SP18 for the princely sum of £3.43 and suspect that is the right fitment.

Messages
1,854
#46
It is rather scary that Amazon seems to know that I used to have a Jaguar X-Type. I suppose I must have put it in when searching for a part sometime:

sp26S 2.jpg

But it seems to have an opinion on what will fit a QP, now I have put my REG in:

wiper 2.jpg


MGT

Junior Member
Messages
260
#49
Denso hybrids are an excellent upgrade from OEM, and still look in style with the car (instead of the marmite flat wipers)


MGT

Junior Member
Messages
260
#50

jemgee

Junior Member
Messages
155
#51
Was helped by a friendly local mechanic to put the new blades on. No problem with the 18" blade but we needed to notch out the side of the overclip so it would close over the wider mount on the 26". The other thing was the tip of the new blade is deeper than the original blades and will not pass under the shoulder of the wiper arm. Not a prolem as long as the tip is on the trailing side of the arm.

The performance of the blades is great

Messages
27,279
#54
Just replaced mine again.

Conformed that Boch SP29 and 19 fit just fine. Fitting the 26 requires some jiggling, but takes about 1 minute:
Remove black plastic insert from wiper
Slip insert half way on to wiper arm hook
Clip wiper onto clip and arm
Slide insert *fully* home onto hook

Job done

£30 the pair from Halfords

C


conaero

Forum Owner
Messages
27,823
#56
Just replaced mine again.

Conformed that Boch SP29 and 19 fit just fine. Fitting the 26 requires some jiggling, but takes about 1 minute:
Remove black plastic insert from wiper
Slip insert half way on to wiper arm hook
Clip wiper onto clip and arm
Slide insert *fully* home onto hook

Job done

£30 the pair from Halfords

C
29 or 26” Kitty????

Also others have quoted 18” for the shorter one????

Last edited:
Messages
27,279
#59
I looked earlier and the 19 comes nowhere near my 26" (oooerr) . Couldn't get much longer as it sits across the corner of the screen and it's very nearly touching the rubber at both ends.

C
