Service Manual

StradaleDave

StradaleDave

Junior Member
Messages
35
I'm looking to do an oil change on my engine, transmission and diff. Does anyone have a copy of a service manual for a GT? Preferably including the F1 trans.

Thanks.

StradaleDave said:
I'm looking to do an oil change on my engine, transmission and diff. Does anyone have a copy of a service manual for a GT? Preferably including the F1 trans.

Thanks.
Click to expand...
Ps....as far as I know the F1 transmission and Diff are connected and use the same oil.

I did an oil change on this last year, see here.

See here

Last edited:
P.s on the engine oil change

  1. They are sensitive to oil level. Approx 9L, conaero has a great procedure do a search for it
  2. Don't tighten the engine oil drain plug to 60 nm...apparently they are known for stripping. For me it was ok, but I found out after.
  3. Beware fake oil filters. If the engine oil filter is not in a bag wet with oil from pre testing or pre lube...it is fake. There are other signs just Google

These are the part numbers for a service.
205468 Genuine Maserati Part AIR FILTER
289571 Genuine Maserati Part OIL FILTER
66855200 POLLEN FILTER
214271 Original Equipment WATER PUMP DRIVING BELT
239616 AUXILIARY BELT

And fluids from the Motul Range other than Shell Helix Ultra 5W40 for the engine.
All available from Opie Oils who'll give you a decent Sports Maserati discount.
Motul Gear Competition 75w140 Fully Synthetic Racing Transmission & LS Differential
Oil 1 Litre
Motul Multi ATF Fully Synthetic Car Automatic Transmission & Power Steering Fluid 1
Litre
Motul RBF 700 Factory Line Fully Synthetic DOT 4 Racing Brake & Clutch Fluid 500ml
Motul ATF VI Fully Synthetic Automatic Transmission & Power Steering Fluid 10x 1
Litre

Last edited:
midlifecrisis said:

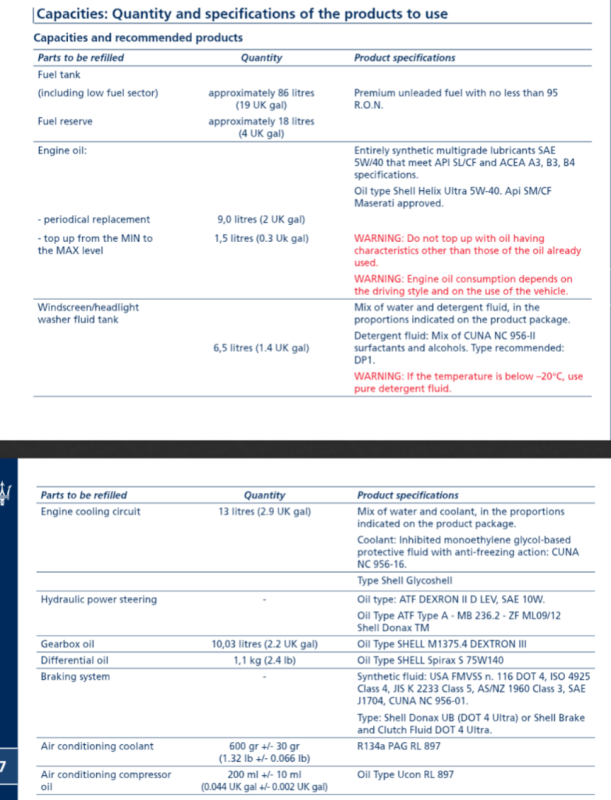

View attachment 139503

Ta da!
Click to expand...
Becareful here as i understand it when the word gearbox and differrential is used, it is for the ZF....and they are different

The F1 diff oil and gearbox oil are the same which is a 75-90 and of course the F1 fluid in the hydraulic system is different. As far as I understand the F1 gearbox and diff are integrated in the F1 gearbox housing and when you change the gearbox oil, the diff gets drained as well. The ZF is different design.

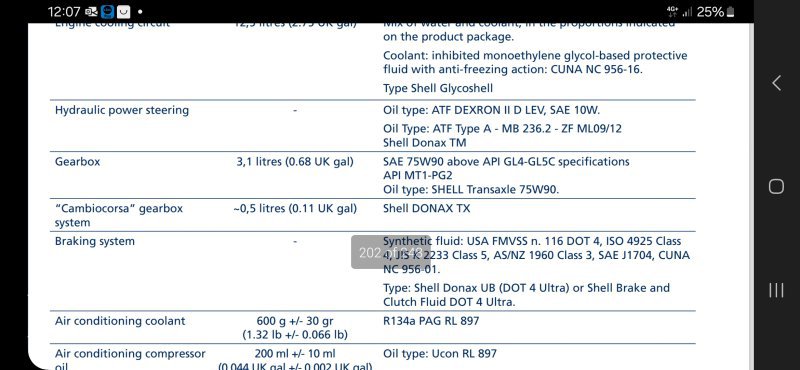

See picture of my F1 owners manual


Attachments

  • Screenshot_20250521_120712_OneDrive.jpg
    64 KB · Views: 10
P.s good to know about the opie sports maserati discount....do you have to call them or is there a code? I actually work within 0.5 miles of opie and buy lots of things. I normally wait for a sale, so a regular to use code would be good

strictly said:
P.s good to know about the opie sports maserati discount....do you have to call them or is there a code? I actually work within 0.5 miles of opie and buy lots of things. I normally wait for a sale, so a regular to use code would be good
Click to expand...
When you get to the checkout there's a drop down discount box for all the clubs and forums

strictly said:
Does that include the F1?

I have the 2014 GT service manual which explains the ZF....I cant find a F1 version. For F1 information i am using a QP5 service manual and maserati academy training documents
Click to expand...
Yes @strictly , multiple manuals in the email to download.

If you want to DM with email address I’ll forward.

@StradaleDave did mention an error opening so when I get a sec I’ll try consolidate into a wetransfer if the original links don’t work.
They open fine from my iPhone.

So just to clarify, for the F1 transmission, diff and trans are combined. And the oil is 75W90? Is that correct?

StradaleDave said:
So just to clarify, for the F1 transmission, diff and trans are combined. And the oil is 75W90? Is that correct?
Click to expand...
Yes this is how i understand it, but wait for someone else to confirm.

I concluded this from the following

  1. General research, old threads here.

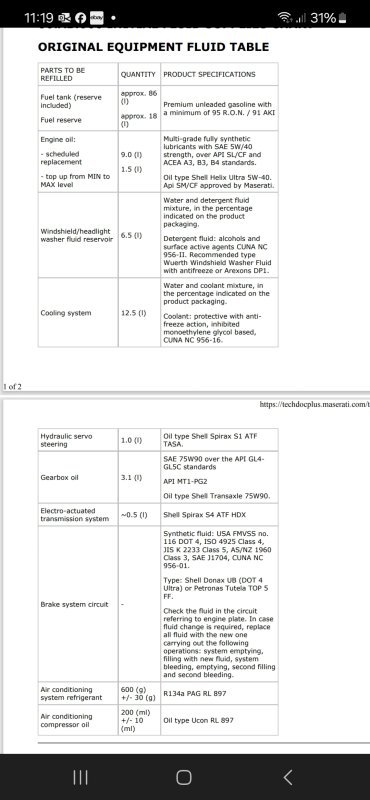

  2. Diff oil not mentioned in F1 owners manual or F1 workshop manual. See picture for snapshot of f1 manual.

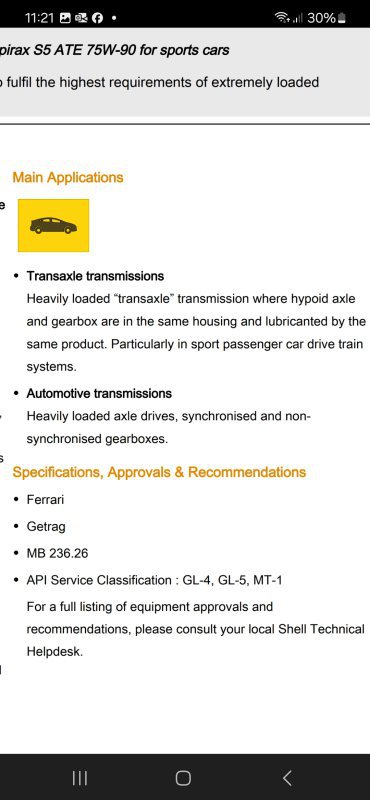

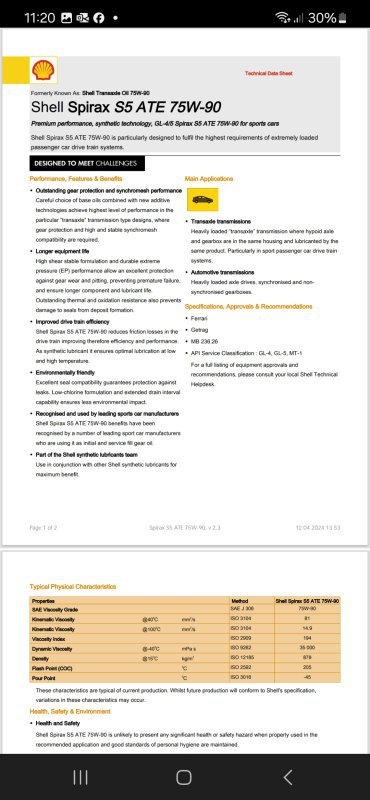

  3. Datasheet for original Shell oil mentions combined unit, not those exact words. See picture
As far as I understand there is a limited slip diff, and the oil needs to be suitable. I used the factory shell oil, but In the UK that is easy to get hold off. I bought from autodoc and ebay


Attachments

  • Screenshot_20250523_112134_OneDrive.jpg
    46.7 KB · Views: 9
  • Screenshot_20250523_112048_OneDrive.jpg
    60.3 KB · Views: 10
  • Screenshot_20250523_111936_OneDrive.jpg
    52.4 KB · Views: 10
Granted they are on this side of the pond, but Formula Dynamics does a nice kit of parts, fluids, etc. for services in the right varieties, quantities, etc.

midlifecrisis said:
These are the part numbers for a service.
205468 Genuine Maserati Part AIR FILTER
289571 Genuine Maserati Part OIL FILTER
66855200 POLLEN FILTER
214271 Original Equipment WATER PUMP DRIVING BELT
239616 AUXILIARY BELT

And fluids from the Motul Range other than Shell Helix Ultra 5W40 for the engine.
All available from Opie Oils who'll give you a decent Sports Maserati discount.
Motul Gear Competition 75w140 Fully Synthetic Racing Transmission & LS Differential
Oil 1 Litre
Motul Multi ATF Fully Synthetic Car Automatic Transmission & Power Steering Fluid 1
Alfa Romeo 145 Workshop Manual Download
Motul RBF 700 Factory Line Fully Synthetic DOT 4 Racing Brake & Clutch Fluid 500ml
Motul ATF VI Fully Synthetic Automatic Transmission & Power Steering Fluid 10x 1
Litre
Click to expand...
Hey! Grab a copy of the GT Workshop Repair Service Manual from ELSA Win or AutoRepairManuals.biz. It covers all fluid specs, capacities and torque settings including the F1 transmission specific procedures. Make sure it matches your model year. Good luck!

cuturur said:
Hey! Grab a copy of the GT Workshop Repair Service Manual from ELSA Win or AutoRepairManuals.biz. It covers all fluid specs, capacities and torque settings including the F1 transmission specific procedures. Make sure it matches your model year. Good luck!
Click to expand...

AI BOT?
