Headlamp washer covers

Well having upgraded my OneCNC package (and my 3D drawing skills) I drew up a mirror version of the RH clip and my colleague’s son printed the part. Tested it just now and it clips on to the spray bar perfectly ( h*ll of a job to unclip it!).

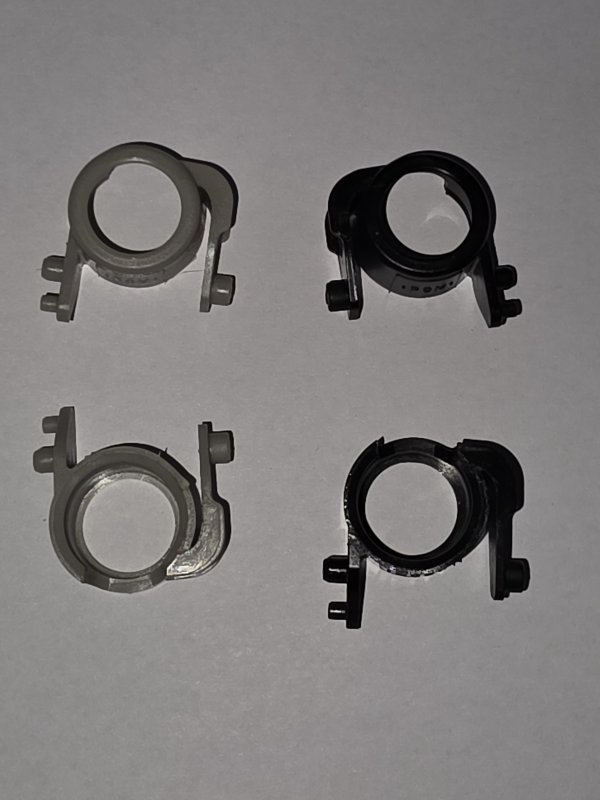

A few tweaks to the pegs and we are there - grey-R OEM; black-L reprint.
I will probably draw both and print in pairs if anyone is interested:

RodTungsten said:
Now I have a pair of new covers - much more robust - from Octoclassic.
Pulled out the spray bars to find that the lh bar is missing the clip to which the cover attaches.

Does anyone supply these?
View attachment 135381View attachment 135382
Click to expand...

Had the same issue myself. The replacement cover i got from Octoclassics. Then discovered the clip was missing off the spray head.

After a bit of digging it appears that the spray arm uses the same or very similar clip to the Hyundai i40/i30 and the Mini Cooper R55.

Managed to find some Hyundai i40 clips on aliexpress for £1.99 a pair.

I Have test fitted them on the cover and they are spot on. I still need to test fit on the spray head and will update when i have but they look like they should be a good fit.

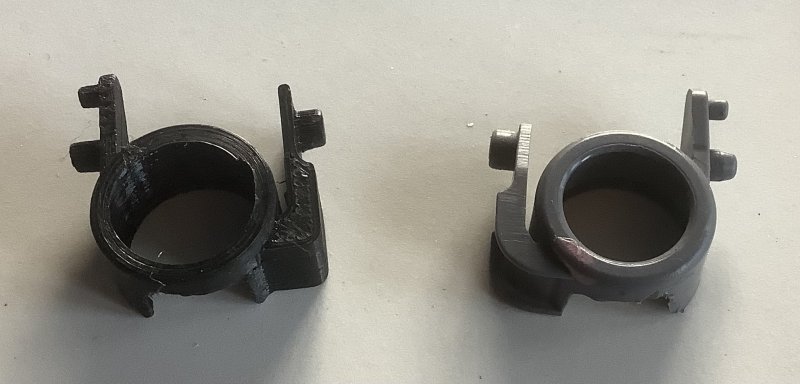

Picture below if you want to compare against the original part.


I will test fit and let you know but it looks like these will fit out of the box or with a small amount of fettling. Just need to make sure the retaining recess lines up properly

I thought I would put the M139 part numbers for the covers here:
  • Left: 10136828 (Ref: 271 073-00L, 201033)
  • Right: 10136826 (Ref: 271 074-00R, 188285, 10186826) [1, 2, 3, 4, 5]
Is anyone 3D printing these?
